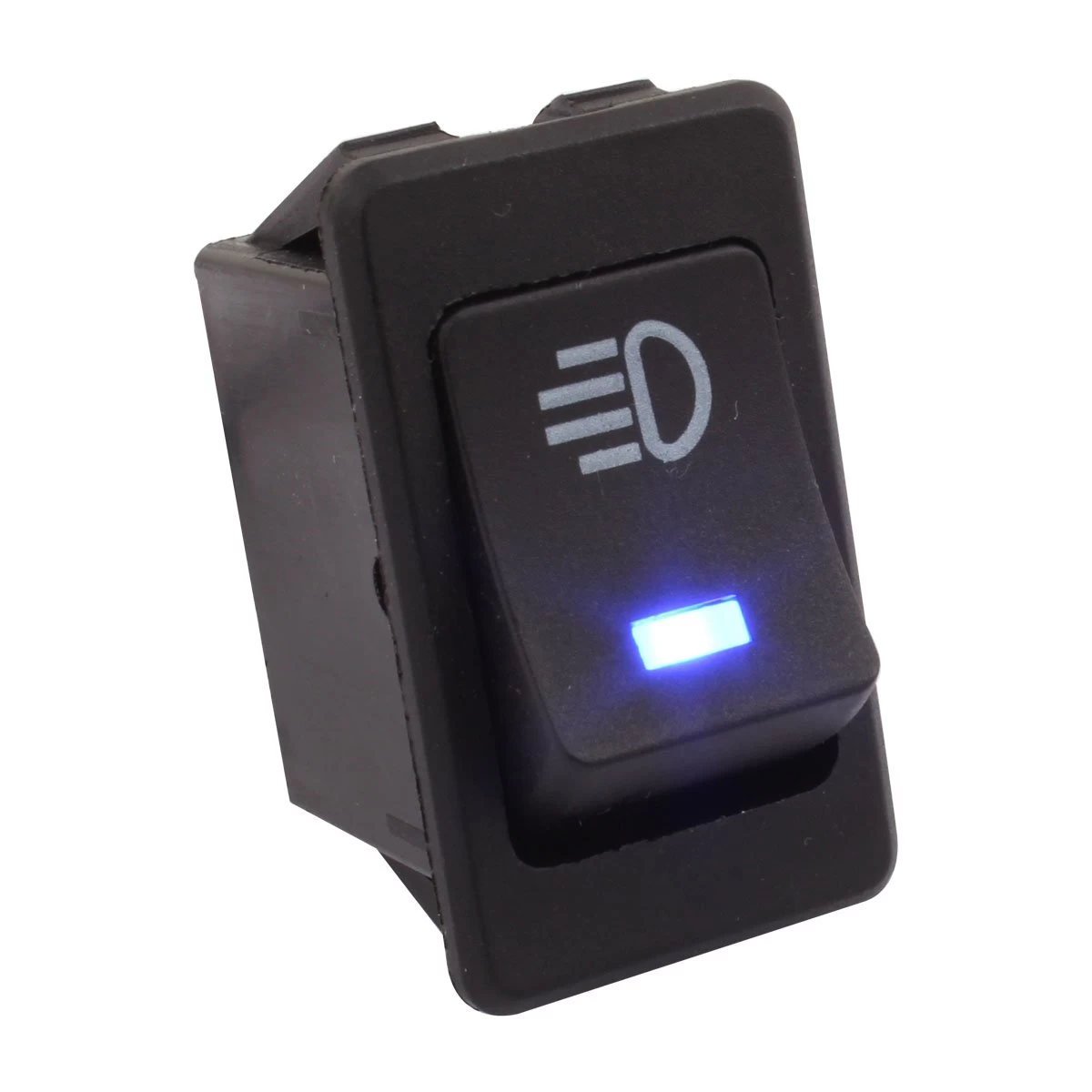

12V 35A Fog Light Rocker Switch with LED for Car
LED work indicator: Blue Product switch function: ON-OFF Number of terminals: 4 Product lighting status: single lamp Product size: 38mm x 23mm x 35mm/1.50 x 0.91 x 1.38" (LxWxH) Product mounting rule: 28mm x 19mm/1.10 x 0.75" (LxW) Product minimum current load...
Pay LKR 359.70 × 3 installments with KOKO Quick Overview
LED work indicator: Blue
Product switch function: ON-OFF
Number of terminals: 4
Product lighting status: single lamp
Product size: 38mm x 23mm x 35mm/1.50 x 0.91 x 1.38" (LxWxH)
Product mounting rule: 28mm x 19mm/1.10 x 0.75" (LxW)
Product minimum current load: minimum current load can be 0
Product working voltage: DC 12V
Product maximum working current: 35A
Product contact resistance: ≤50mΩ
Product insulation resistance: ≥100mΩ
Product pin number: 4P
Product life cycle with no load: 20,000 times
Product life cycle with full load: 10,000 times
Product Contact Material / Composition: Silver Tin Oxide / Red Copper
Product operating temperature range: +30K
Product material: environmentally friendly and flame retardant materials
Applicable models: suitable for all 12/24V battery cars, motorcycles, buses, ships, motor homes, yachts, trailers, etc.
Product application: can be used to control fog lights, daytime running lights, headlights, and many other uses
Product Details
LED work indicator: Blue
Product switch function: ON-OFF
Number of terminals: 4
Product lighting status: single lamp
Product size: 38mm x 23mm x 35mm/1.50 x 0.91 x 1.38" (LxWxH)
Product mounting rule: 28mm x 19mm/1.10 x 0.75" (LxW)
Product minimum current load: minimum current load can be 0
Product working voltage: DC 12V
Product maximum working current: 35A
Product contact resistance: ≤50mΩ
Product insulation resistance: ≥100mΩ
Product pin number: 4P
Product life cycle with no load: 20,000 times
Product life cycle with full load: 10,000 times
Product Contact Material / Composition: Silver Tin Oxide / Red Copper
Product operating temperature range: +30K
Product material: environmentally friendly and flame retardant materials
Applicable models: suitable for all 12/24V battery cars, motorcycles, buses, ships, motor homes, yachts, trailers, etc.
Product application: can be used to control fog lights, daytime running lights, headlights, and many other uses
