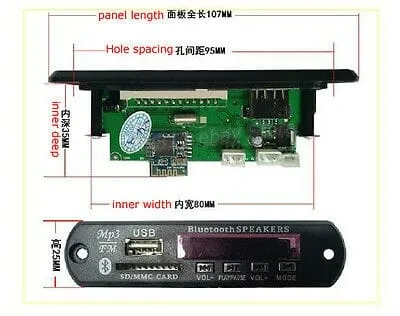

12V Bluetooth MP3 WMA Decoder Board

With bluetooth audio receiver module,when cell phone and bluetooth module matching connection,the MP3 or nondestructive APE files via bluetooth sent tothe product of the bluetooth receiver module to play,which has greatly helped the function of the product and entertainment.This product also be like ordinary MP3 decoder board,play U disk or TF card MP3 files,as well as the radio broadcast.(This product without bluetooth calling function,with no power amplifier,only connect to an external amplifier can it use)support signal switch directly.Support USB, TFsupport bluetooth (Bluetooth3.0 EDR) (after been paired with mobile phones can realize wireless music play)support USB/TF/Bluetooth/FM/LINE switch.MP3/WMA,WAV lossless music decoding chip.support USB/TF card switch,PREV,NEXT,fast forward,fast rewind,volume,EQ,play/pause,stop,single repeat,mute, shutdown and direct election.support Bluetoot PREV,NEXT,volume,EQ,play/pause,mute,turn it off.support FAT16,FAT32 file system.Support for MP1 Layer3,MP2 Layer3,MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs.support power off memory function: memory play songs and volume before power off

Note: Non-smart phones (android) have to enter the password - 0000 Decoding board play mode instruction Decoding board in the absence of memory card or U disk,boot default to audio input mode,the screen display LINE Press MODE key on the panel or the remote control switch to bluetooth MODE,the screen shows BLUE,can open bluetooth search connection at this time Press MODE key on the panel or the remote control switch to radio MODE,the screen display FM radio frequency,long press PLAY button automatic searching channel Press MODE key on the panel or the remote control switch to the U disk or memory card play MODE,the screen displays the time schedule of the songThe remote control instruction: POWER: STANDBY button cannot switch. MODE: TF card and U disk: switching sequence for USBTFBluetoothFMAUX;Only U disk: switching sequence for USBBluetoothFMAUX;Only the TF card: switching sequence for TFBluetoothFMAUX;There is no USB and TF card: switching sequence for FMAUXBluetooth. PREV: In USB/TF/Bluetooth MODE,short press for PREV;In the USB/SD MODE,long press for fast rewind;In FM MODE, short press for last channel,long press for scan search last channel.NEXT: In USB/TF/Bluetooth MODE,short press for NEXT;In USB/TF MODE,long press for fast forward;In FM MODE,short press for next channel,long press for scan search the next channel. VOL + : short/long press for music. VOL - : short/long press for music. REP:In USB/TF MODE,is the switch key between single repeat and whole cycle when play music,boot for all cycle. STOP: In the USB/TF MODE,short press to STOP the music play. MUTE: MUTE,press for MUTE,press again for relieve(also can relieve by VOL- /VOL+). EQ: Acoustic field MODE.The NORMALBASPOPROCJAZZCLACUTNORMAL PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY/PAUSE;In the FM MODE,long press for searching all channels and save.Specification: Installation pitch: 92 mm wide Installation hole: 83 x 20 x 38 mm Overall dimensions: 107W *25H * 38deepmm Input voltage7-12VPackage Included:1 x Decoding board1 x The remote control1 x 2P plug wire with power supply reverse connection protection1 x 3P audio plug thread
