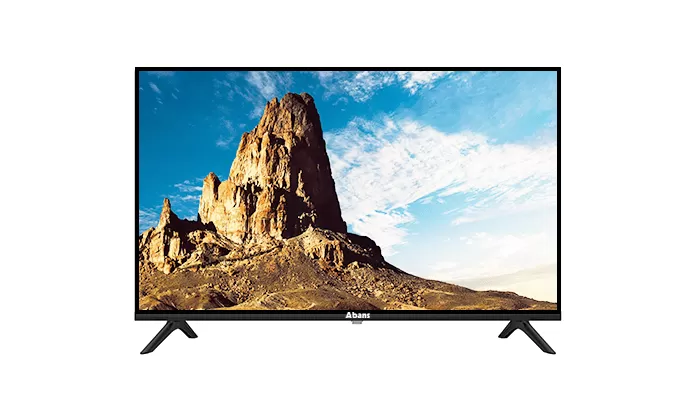

ABANS-32 LED TELEVISION

ABANS 32 Inch LED TV

ProductProduct Code ABTV32A25

Image displayPanel model PT320AT02-3

Active display area, horizontal dimension mm697.685

Active display area, vertical dimension mm392.256

Screen size (rounded to nearest integer)cm80

Screen size (rounded to nearest integer)inch32

Display technology LCD/LED lit

Backlight source LED Matrix

Resolution (Horiz x Vert)pixel1366 x 768

Screen curvature radiusmm-

Colour depthbit8bit

Image refresh frequencyHz50/60

Smooth motion rate 50

3D image -

Maximum brightness of white cd/m2300

Native contrast ratio 3000:01:00

Viewing Angle (Horiz / Vert) Degrees89 / 89

Quantum dot No

Wide colour gamut No

Response Time ms8

ConnectivityRF- Radio frequency input 1

Component or Y Pb (Cb) Pr (Cr) input 0

Audio L/R for component input 0

AV input 1

AV output 0

USB interface type 3.0 (Qty / List….) 0

USB interface type 2.0 (Qty / List ….) 2 / USB 1, USB 2

Optical digital audio output (SPDIF) 1

Earphone jack 1

HDMI portsHDMI inputs 2

HDMI type 4K@60Hz with HDCP version 2.2-

HDMI type 1.4 with HDCP version 1.4 Yes

Digital TV receptionTelevision system (DVB-T / DVB-T2) NO / NO

Video decoder (MPEG2 / MPEG 4) NO / NO

AC3 Surround sound decoder NO

AS 4599.1 compliance NO

AS 4933.1 compliance NO

LCN- Logical channel number and DTV Service name support NO

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTXNO / NO / NO

Subtitles NO

RF Signal strength indicator NO

RF Signal quality indicator NO

RF Bit error rate indicator NO

EPG- Electronic programming guide, 7 days for all services NO

Audio description (vision impairment aid) NO

Parental rating lock NO

Analogue TV receptionColour-Sound systems in VHF band PAL/SECAM NTSC、(B/G,D/K,I ,M)

Colour-Sound systems in UHF band PAL/SECAM NTSC、(B/G,D/K,I ,M)

Stereo sound decoder {A2, Nicam, ….} NO

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTXNO / NO / NO

Subtitles NO

Image processingBacklight control No

Light sensing No

Dynamic backlight control No

Local dimming / controllable zones No

Zoom function settings ( 4:3 / 16:9 / Auto / Zoom 1 / Zoom 2)Yes / Yes / Yes / Yes / Yes

1:1 Pixel mapping No

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)No / No / No

HDR system (HDR10 / Dolby Vision) No / No

HLG (Hybrid Log-Gamma) for HDR No

HEVC (H.265) decoder No

Dual image (PIP / POP) No / No

Motion enhancement and compensation (MEMC)No

SoundAudio power output per channelWatt6

Number of speakers (Tweeter / Midrange / Woofer)0 / 2 / 0

Automatic volume level (AVL) Yes

Audio equalizer Yes

Dolby Digital Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}SWS(hisilicon)

Lip-sync adjustment NO

FeaturesOn/off timer NO

Power off if no signal Yes

Sleep timer Yes

Program lock Yes

OSD transparency control No

Software version OSD indication Yes

Legal requirements: Disclaimer / Acceptance of TermsNo / No

Favourite channels list Yes

Electronic point of sales (E-POS) No

OTA- Over the air software updates No

Voice command No

Screen mirroring {Miracast, Anyview Cast, ...}No

Smartphone remote control application {TV remote, ...}No

Replaceable demo video for Store mode No

Remote control via serial port No

USB media playerPersonal Video Recorder No

Time Shift No

DTV Recording (EPG scheduling / start from Standby )No / No

DivX decoder No

MPEG4 (H.264) / H.265 decoder Yes / NO

DMP- Digital media player content (Music / Video / Photos / Text)Yes / Yes / Yes / Yes

DMP Auto-play No

DMP for UHD content via USB No

DMP File allocation table (FAT / FAT32 / exFAT / NTFS)Yes / Yes / No / Yes

PVR File allocation table (FAT / FAT32 / exFAT / NTFS)No / No / No / No

Hotel lockProtected Hotel lock submenu (Password / fixed code)Yes /No

Clone function for programs, sound and image settings.No

Sub-menu lock, including tuning lock No

Keyboard lock Yes

Maximum volume lock Yes

Power on volume Yes

Power on, apply default sound/image settingsNo

Power on source selection Yes

Power on RF channel selection Yes

Power on mode (On / Standby / Last) No / No / No

Inputs access (Enable / Disable) Yes

HardwareProcessor / Cores TSUMV53RWET

Dual Tuner No

Colour (Front bezel, rear, stand) Black / Black / Black

Speakers mounted in a box Yes

Mains power switch No

Swivel base No

Compact packaging Yes

Supply range [Voltage / Frequency ] Volt / Hz100 ~ 240V / 50, 60Hz

Standby consumption Watt< 0.5W

Maximum time delay Power On to sound an image sec

InstallationStand area (Width / Depth)mm671/160

Wall mount dimensions (Horiz x Vert)mm100 x 200

Wall mount, screw threadmmM6

VESA compliance Yes

Detachable power cord No

Power cord lengthcm155

AccessoriesRemote controller (Technology / Part number )IR / EN2S30H

Battery (size / quantity) AAA / 2

User manual / Quick setup guide 01-Jan

Warranty [In User manual | In separate sheet]In separate sheet

Skype camera (Qty / Part number) -

3D glasses type [Passive | Shutter] / Link [RF | IR | BT] -

3D glasses (Qty / Part number) -

DimensionsDimensions with stand (W x H x D)mm719X468X160

Dimensions without stand (W x H x D)mm719X429X83

Carton box dimensions (W x H x D)mm791X512X133

Net weight (with stand / without stand)kg3.70 / 3.65

Gross weightkg5.2
