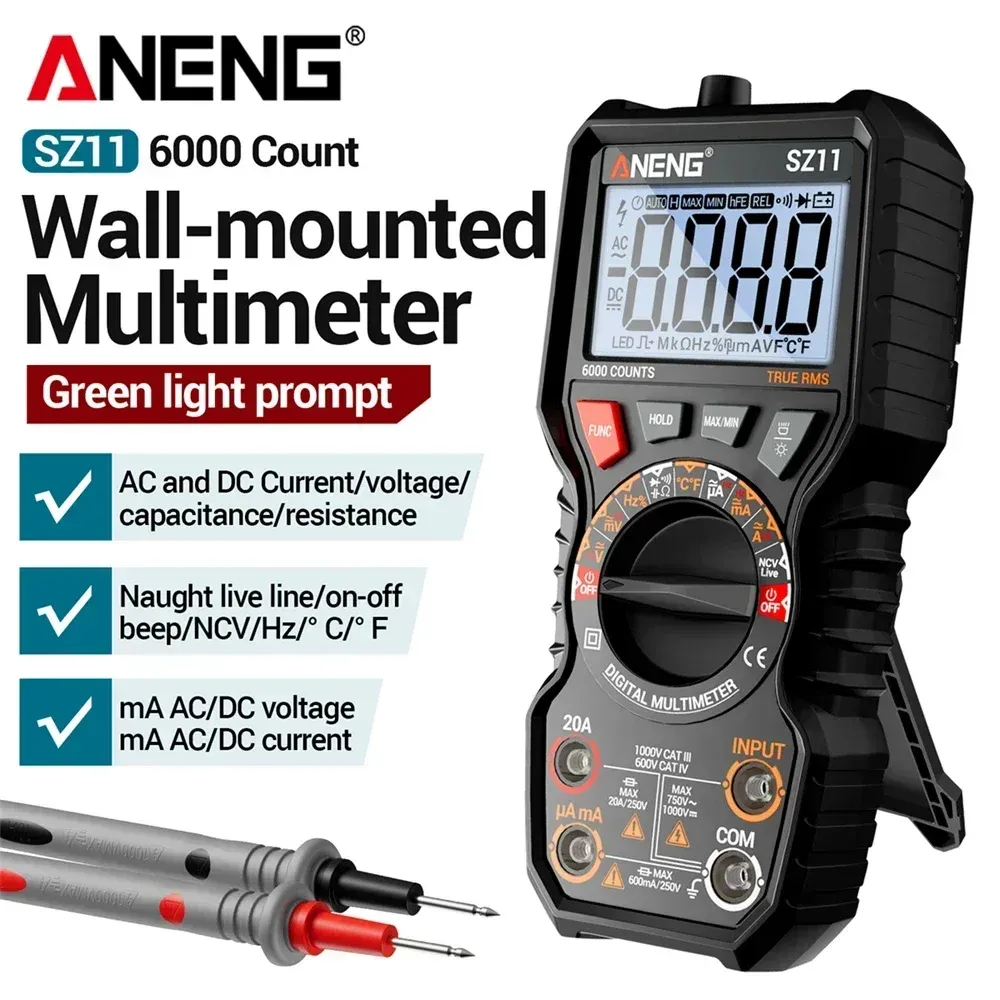

ANENG SZ11 Digital Multimeter: Precision, Safety, and Versatility at Your Fingertips
The ANENG SZ11 is a feature-rich digital multimeter designed to be a reliable and indispensable tool for a wide range of electrical testing and troubleshooting tasks. Whether you're a seasoned professional or a DIY enthusiast, the SZ11 offers advanced capabilities in a user-friendly package.

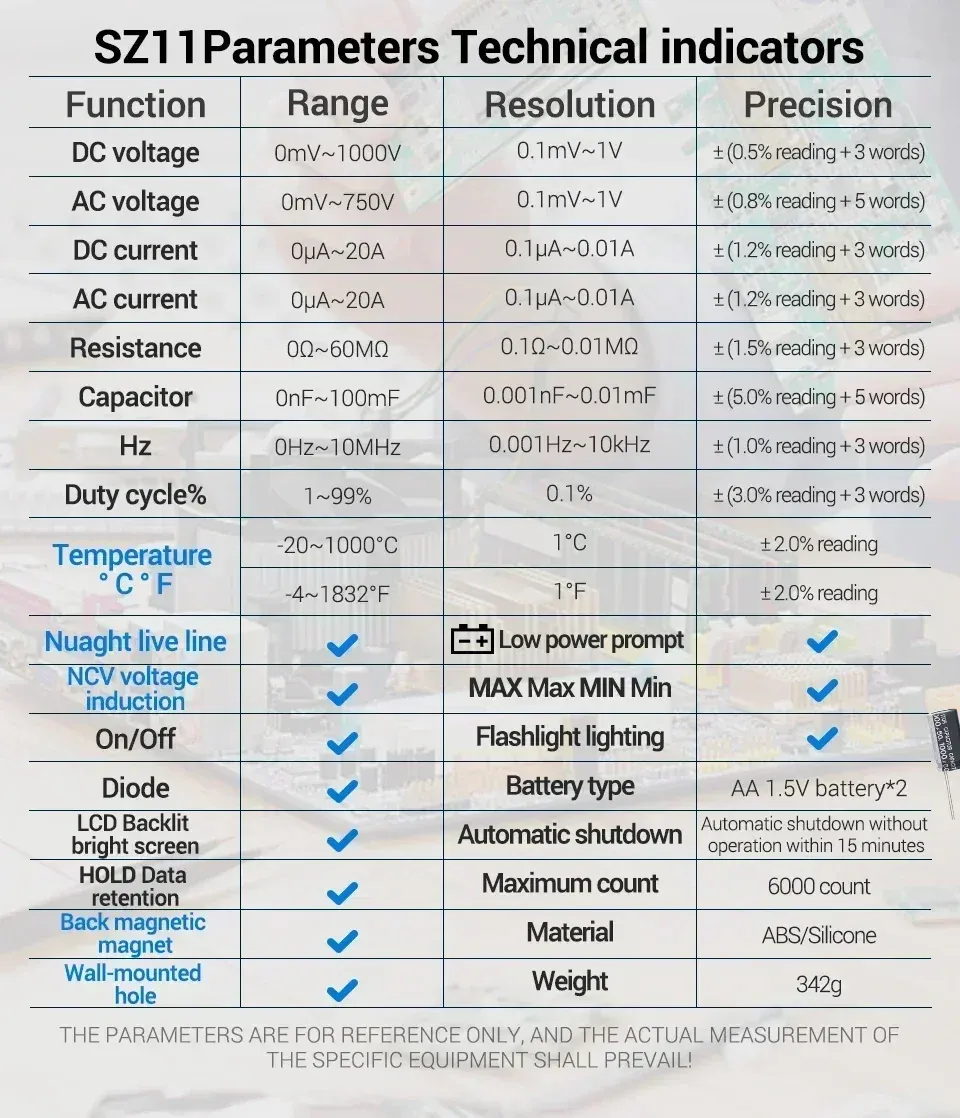

Key Specifications and Highlights:

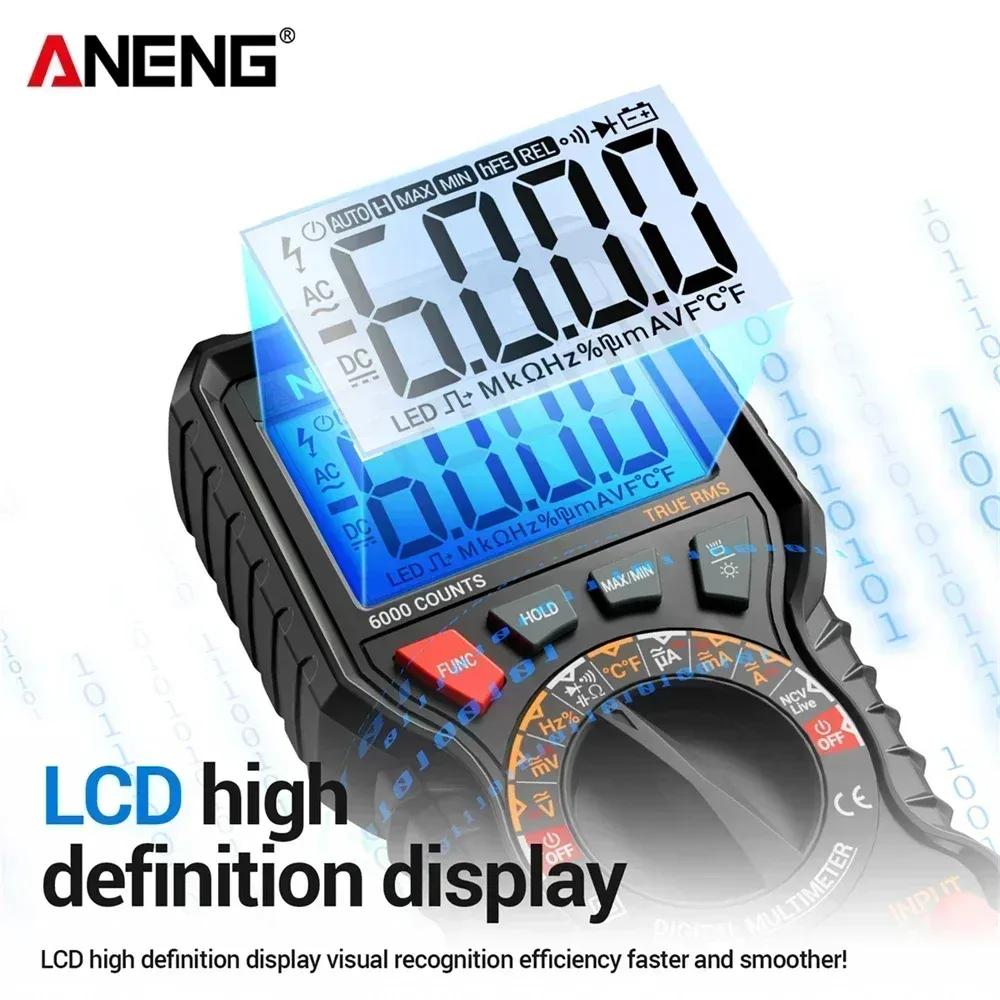

- High-Resolution Display: Features a 6000-count LCD backlit screen for clear and easy-to-read measurements, even in low-light conditions.
- True RMS Measurement: Accurately measures AC voltage and current waveforms, including non-sinusoidal signals, ensuring precise readings for modern electronic devices.
- Comprehensive Measurement Functions:
- Voltage: AC/DC Voltage up to 1000V DC and 750V AC.
- Current: AC/DC Current up to 20A.
- Resistance: Up to 60MΩ.

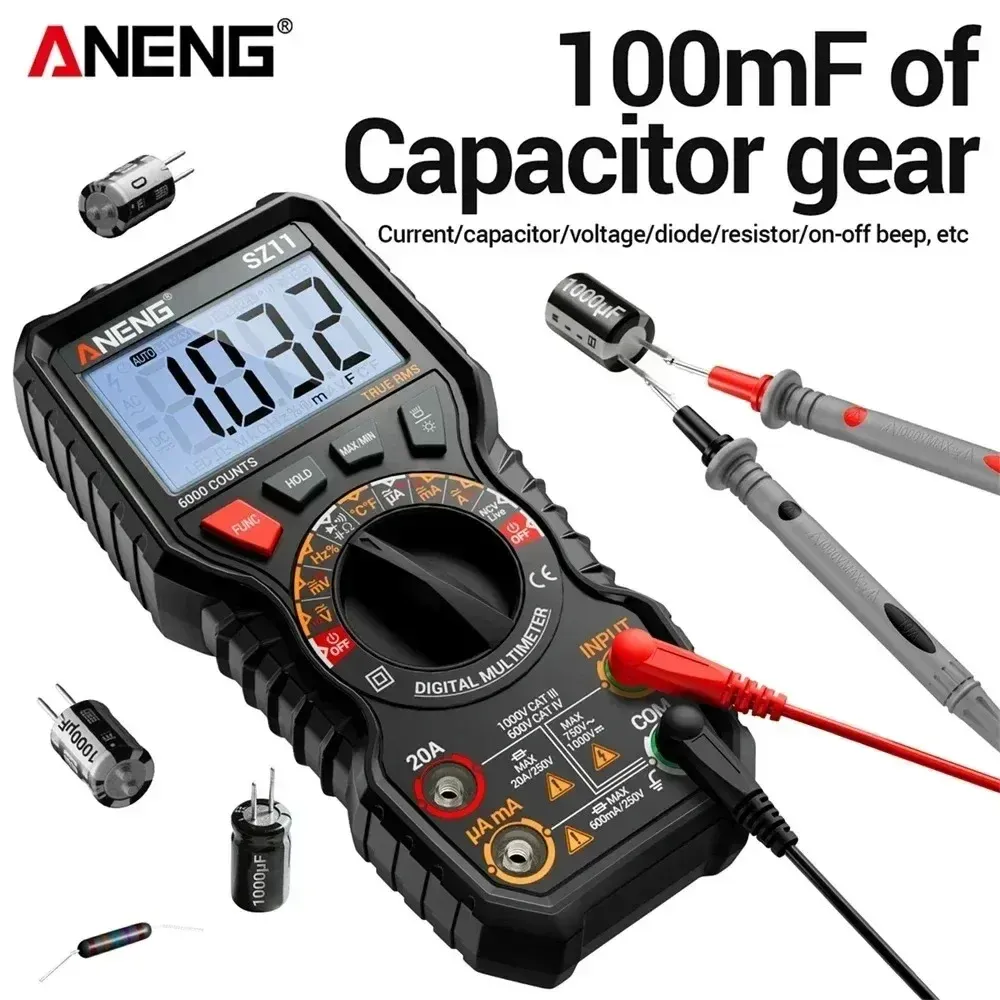

- Capacitance: Up to 100mF.
- Frequency: Up to 10MHz.
- Temperature: -20°C to 1000°C (-4°F to 1832°F).
- Other Tests: Diode test, continuity buzzer, duty cycle, live/neutral wire detection.
- Non-Contact Voltage (NCV) Detection: Safely detects the presence of AC voltage without physical contact, indicated by an audible alarm and visual flashing lights.
- Intelligent Safety Features:
- Smart Anti-Burn Protection: Built-in safeguards help prevent damage from overcurrent or incorrect usage.

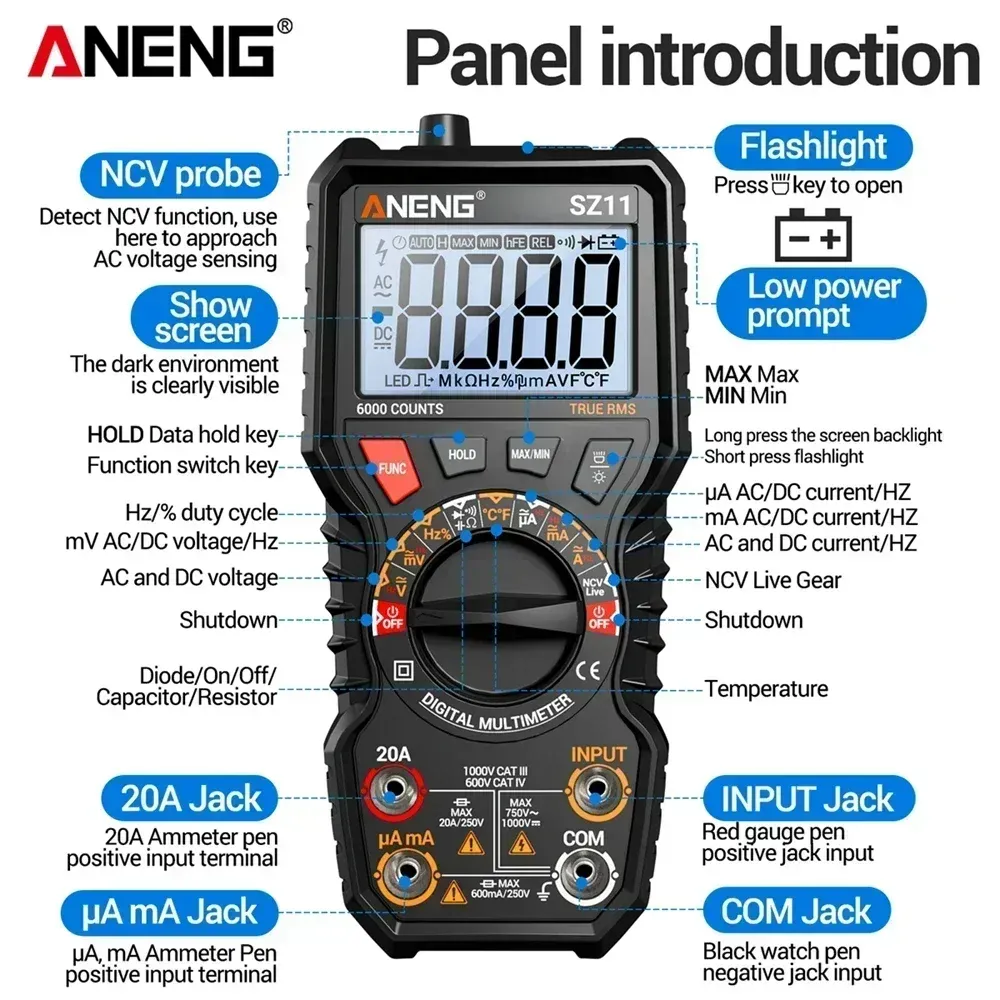

- LED Green Light Jack Prompt: Illuminates the correct input jack for the selected function, reducing the risk of incorrect connections.
- Dual Fuse Protection: Enhances safety for current measurements.
- User-Friendly Design:
- Automatic Range: Simplifies operation by automatically selecting the appropriate measurement range.
- Wall-Mountable & Magnetic: Features a magnetic back for hands-free use on metallic surfaces and a wall-mounting hole.
- Built-in Flashlight: Provides illumination for working in dark environments.
- Auto Power Off: Conserves battery life by automatically shutting down after 15 minutes of inactivity.
- Data Hold Function: Allows you to freeze the current reading on the display.
- Power Source: Operates on 2 x 1.5V AA batteries (not included).
