DI OutputBalanced XLR Output carrying the mic-level output signal, either affected or unaffected depending on the Pre-Post switch.GND LFT (Ground / Lift) Toggle SwitchDisconnects the signal ground on the DI out to break any ground loops. Toggle the switch to the LESS noisy position; it can be either GND or LFT depending on the room, stage or studio condition. Switch does not effect the 1/4-inch (6.5mm) output.Impulse Response (IR) Toggle SwitchesYou can activate/deactivate the IR cabinet simulation for both DI out and 1/4-inch (6.5mm) out separately. Use the appropriate IR toggle switch to turn ON/OFF the emulation for the output you choose.

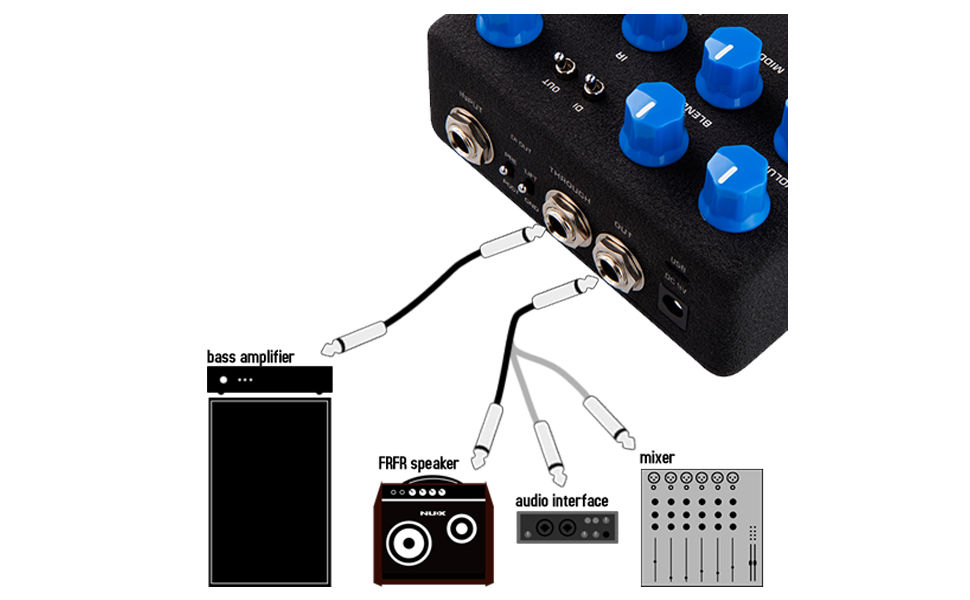

Input/Output and USB ConnectionsMain OUT and ThroughYou can use the main "OUT" and "THROUGH" output to get the dry signal for bass amplifier connection. When you activate the "OUT IR" cabinet simulation, you can connect the pedal to any FRFR speaker, directly to a mixer or audio interface. "THROUGH" output will remain bypassed either the "OUT IR" is activated or deactivated.

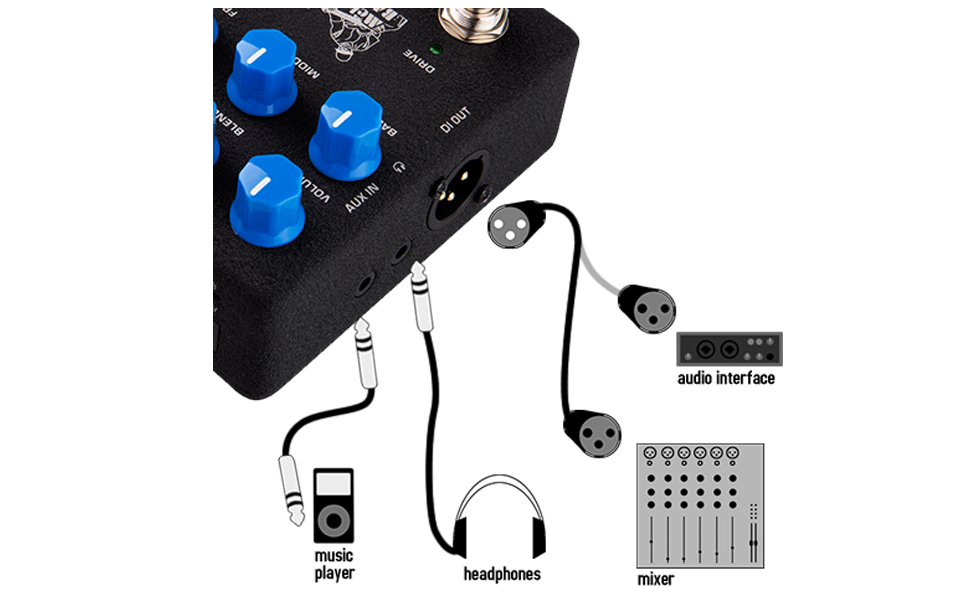

DI Out, Auxiliary Input and Headphone OutputOn the LEFT SIDE of the PEDAL, you can access the XLR output for a mixer and/or audio interface connection, and you have the option of activating the IR cabinet simulation. There is a 1/8-inch (3.5mm) auxiliary input to connect a music player, and headphones output for silent practicing or monitoring (please check the USB connection).Headphone output is related to DI out, when you activate the DI IR simulation, headphones output will be simulated.
