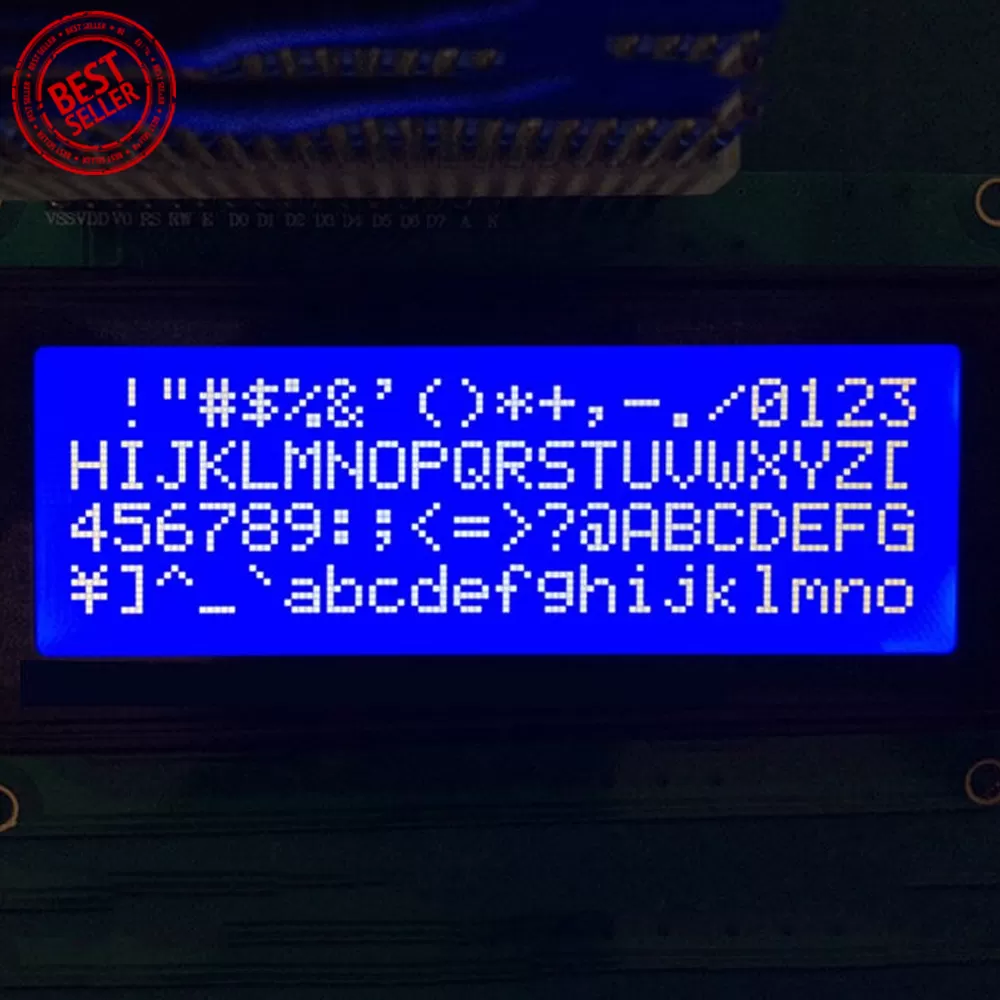

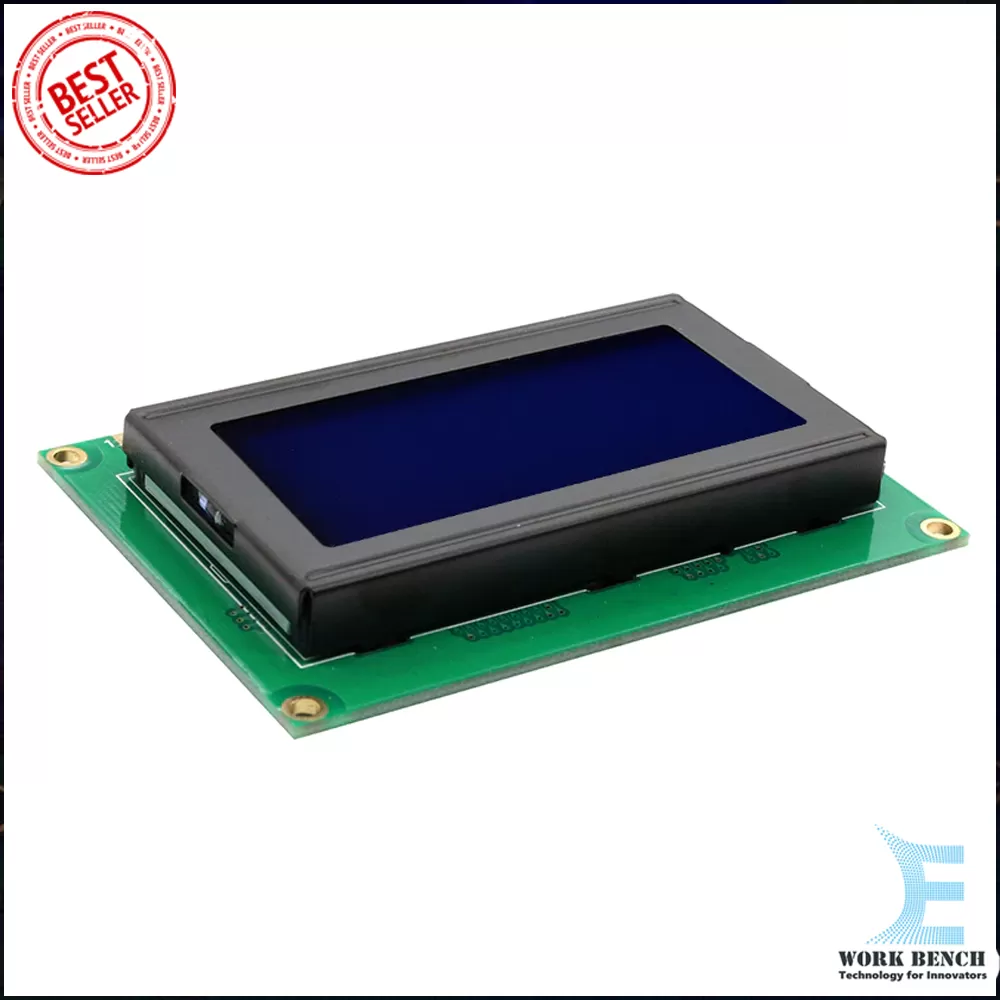

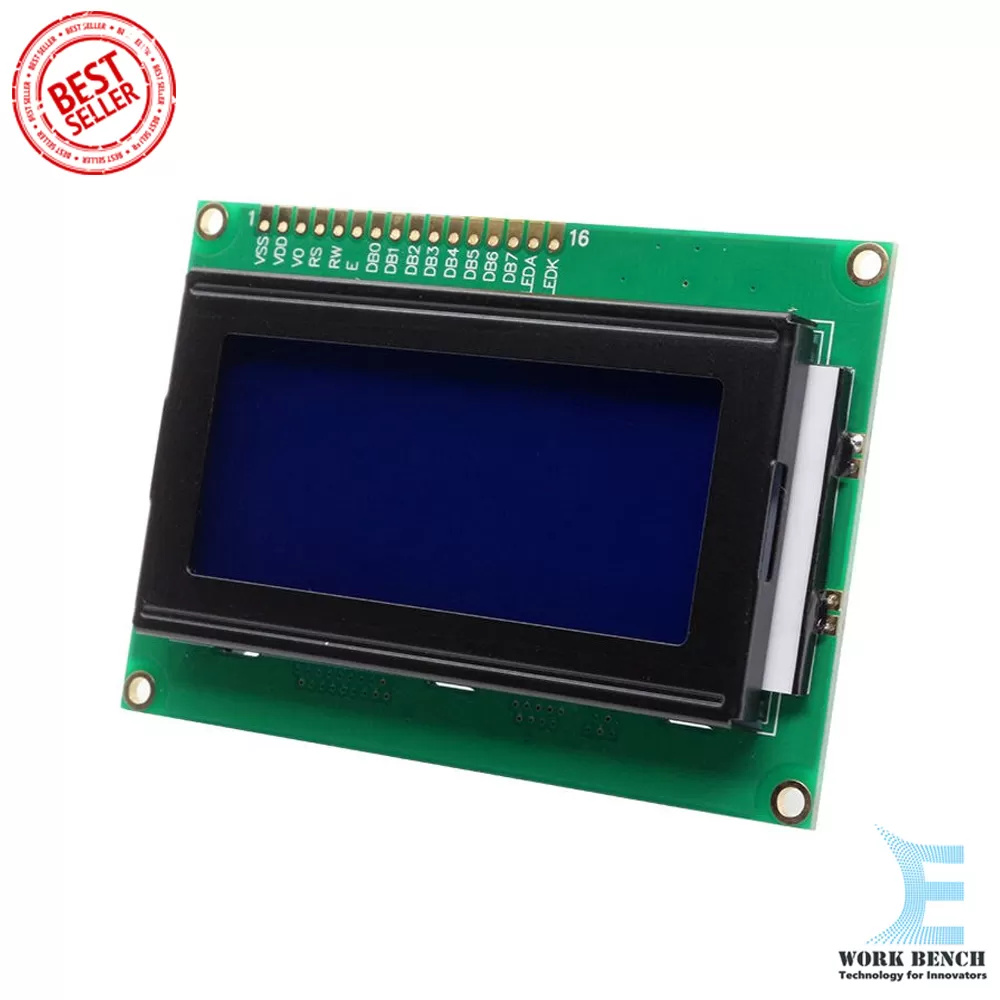

Generic 1604 LCD1604 5V Blue Backlight Character LCD Display Module
DC 5V Blacklight 1604 16*4 16x4 Character LCD1604 Digital Blue LCD Screen Display Module Board for Arduino.
53% OffLKR 1,400Regular PriceLKR 2,950
Pay LKR 508.67 × 3 installments with KOKO Quick Overview
Availability:In stock
Brand:No Brand
What's in the box:1 Unit
Weight:0.5 KG
100% Satisfaction Guaranteed
DC 5V Blacklight 1604 16*4 16x4 Character LCD1604 Digital Blue LCD Screen Display Module Board for Arduino.
Product Details
This DC 5V Blacklight 1604 16*4 16x4 Character LCD1604 Digital Blue LCD Screen Display Module Board is perfect for Arduino projects and other embedded applications requiring a clear character display.
- Part Number (Order Number): 1604 LCD
- Connection: Pin Header
- Display Format: 16x4 Character
- Sunlight Readable: No
- Touch Panel: Optional No
- Outline Dimension: 87.0(W)x60.0(H)x12.5(T)mm
- Visual Area: 61.70x25.20mm
- Active Area: 56.20x20.80mm
- Character Size: 2.95x4.75mm
- Dot (Pixel) Size: 0.55x0.55mm
- Dot Pitch: 0.60x0.60mm
- IC Package: COB IC or Equivalent AIP31066, HD44780, KS0066, SPLC780, ST7066
- Interface: 6800 4-bit Parallel, 6800 8-bit Parallel
- Display Type: STN-LCD Blue
- Appearance: White on Blue
- Backlight Color: blue
- Backlight Current (Typ): 45mA
- Power Supply (Typ): 5.0V
- Supply Current for LCM (Max): 1800uA
- Operating Temp: -20°~70°
- Storage Temperature: -30°~80°
