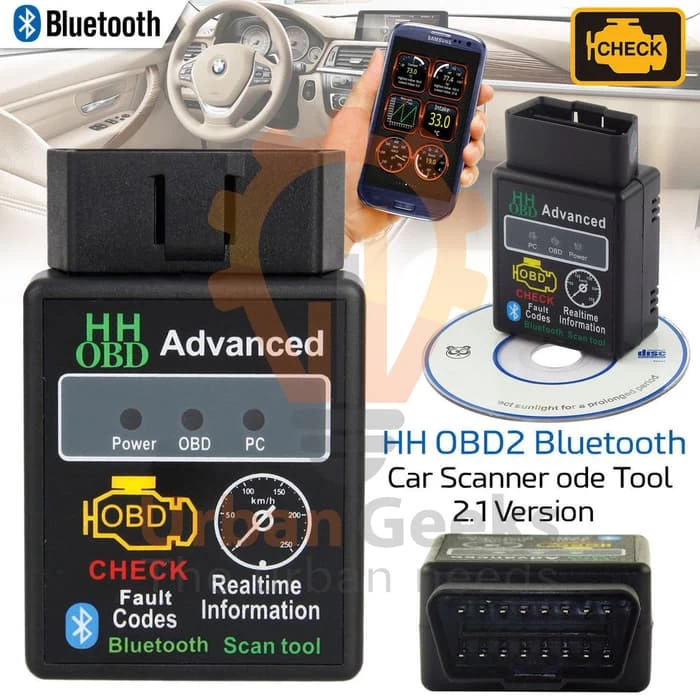

Car Scanner OBD2 Bluetooth Code Reader Fault Diagnostic

. Support : Android/Windows. Please use Android system V4.1 to V4.3 version.

2. It can not support IOS system

3. Bluetooth Passwords: 1234

4. Latest Version SW: V2.1.HW: V2.1.

5. It can not support Diesel or Trucks

6. The latest SW version supports most of OBDII protocols.

Super Mini HH OBD ELM 327 V2.1 Bluetooth Automotive Diagnostic Scanner Tool ELM327 2.1 OBD2 OBDII Interface support Android & PC

Top 5 Reasons to Get V2.1 Mini Bluetooth ELM327 OBD HH:

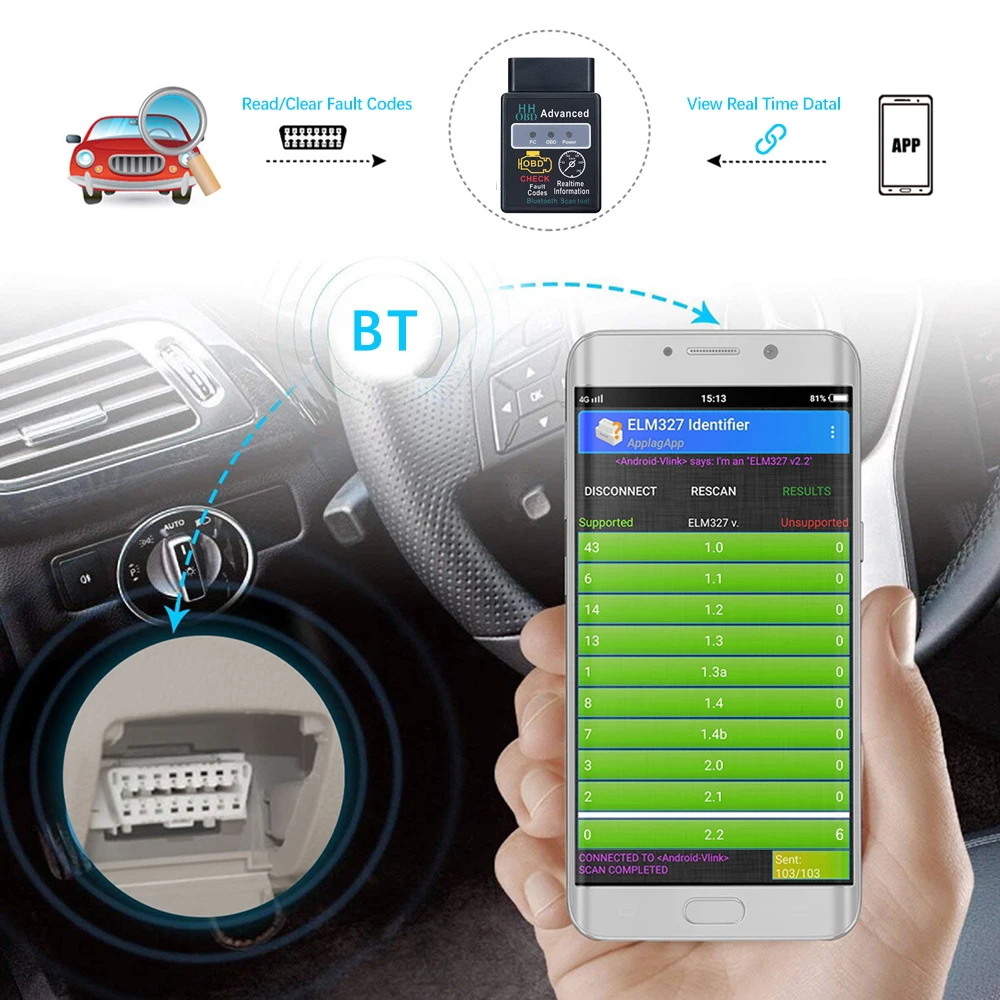

1.This is a vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.

2.OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware

interface to get the information from your car's computer.

3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.

4. To uninstall the program, simply delete the entire contents of the folder where the program resides.

5.The software supports four platforms - For DOS/Windows/Android. This product is a non-oem,generic product.

Notice: This device can't work with IOS system.

V2.1 Mini Bluetooth ELM327 OBD HH :

1. Support : Android/Windows. Please use Android system V4.1 to V4.3 version.

2. It can not support IOS system

3. Bluetooth Passwords: 1234

4. Latest Version SW: V2.1.HW: V2.1.

5. It can not support Diesel or Trucks

6. The latest SW version supports most of OBDII protocols.

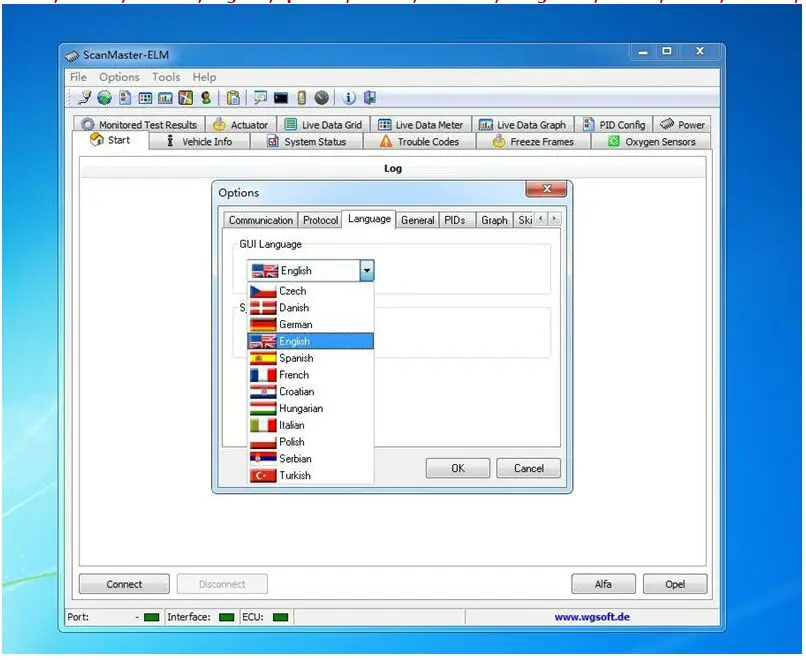

Multi languages:

Czech,Danish,German,English,Spanish,

French,Croatian,Hungarian,Italian,Polish,

Serbian,Turkish and russian

Compatible software:

1. Window:ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

2. Android:Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

3. Symbian:OBDScope

Specifications:

Model name: HH OBD Mini Bluetooth ELM327 V2.1

Type: code readers & scan tools

Output protocol: bluetooth

Color: black

Material : plastic

Voltage: 12V

Current: 45mA

Wave frequency: 38400Hz

Applicable scope: 5-10m / 16.4-32.8ft

HH OBD Mini Bluetooth ELM327 V2.1 Car Diagnostic Scanner Specification:

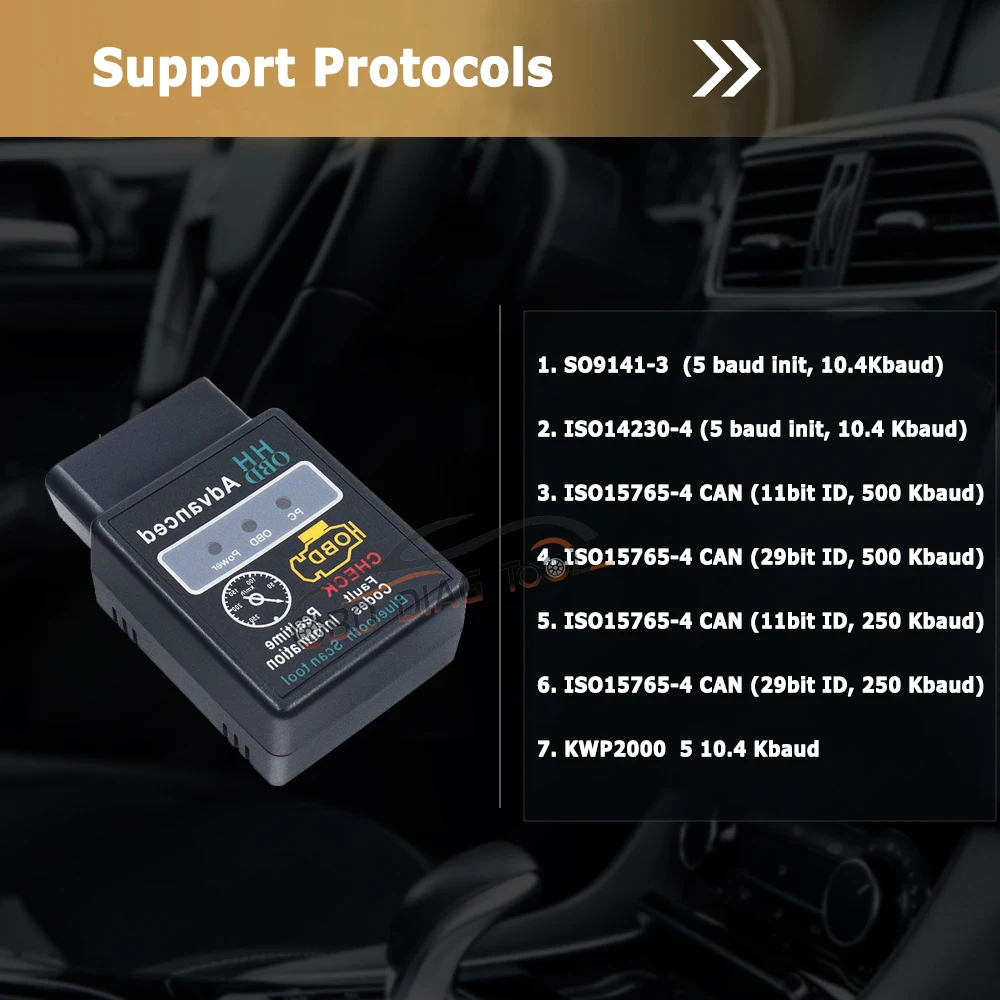

Vehicle Coverage: Works on all OBD2 Vehicles.

1. SO9141-3 (5 baud init, 10.4Kbaud)

2. ISO14230-4 (5 baud init, 10.4 Kbaud)

3. ISO15765-4 CAN (11bit ID, 500 Kbaud)

4. ISO15765-4 CAN (29bit ID, 500 Kbaud)

5. ISO15765-4 CAN (11bit ID, 250 Kbaud)

6. ISO15765-4 CAN (29bit ID, 250 Kbaud)

7. KWP2000 5 10.4 Kbaud

HH OBD Mini Bluetooth ELM327 V2.1 Car Diagnostic Scanner Free Software:

1. Scantool.net

2. GM Mode 22 Scan Tool by Terry

3. OBD Gauge for PalmOS and Pocket PC by Dana Peters

4. OBD Logger by Jonathan Senkerik

5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

6. obd2crazy.com

7. OBD2 Scantool by Ivan Andrewjeski

8. OBDII for ELM322 by David Huffman

9. pyOBD by Donour Sizemore for MacOSX and Linux

10. RDDTC by Pete Calinski

11. Real Scan by Brent Harris

12. ScanTest for Pocket PC by Ivan Ganev aka a-ser

13. OBD by WDT

HH OBD Mini Bluetooth ELM327 V2.1 Car Diagnostic Scanner Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning

(over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13. Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18.Fuel Pressure

Car model list :

(only support 12V Gasoline car , diesel car not supported )

1. American car support car after 1998 year

2. European car support car after 2000 year

3. Asian car support car after 2002, (Japan&Korea&China&so on)

4. Russian cars support after 2012 year (VAZ/UAZ/GAZ car)

Package Including:

1pc x ELM 327 OBD HH Mini Bluetooth V2.1

1pc x CD Driver
