Specification: 1.Module based on: NE555 chip. 2.Delay modue:delay connect module 3.Input voltage: DC12V/DC5V 4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional) 5.Max. load: 2200W

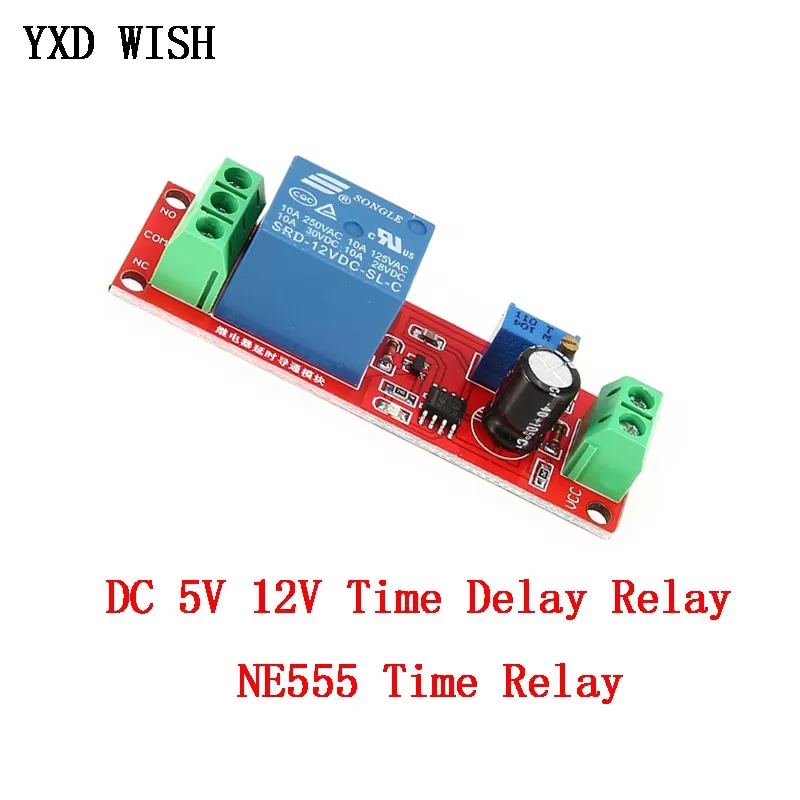

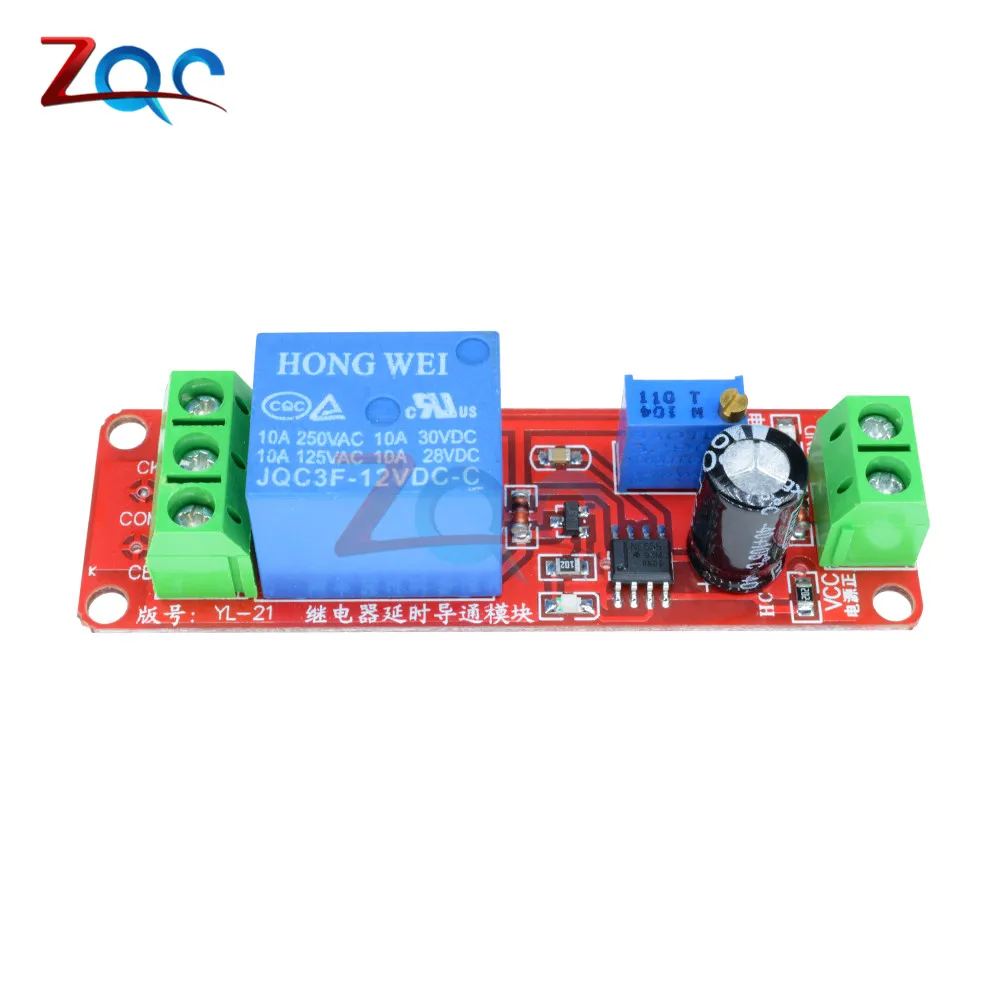

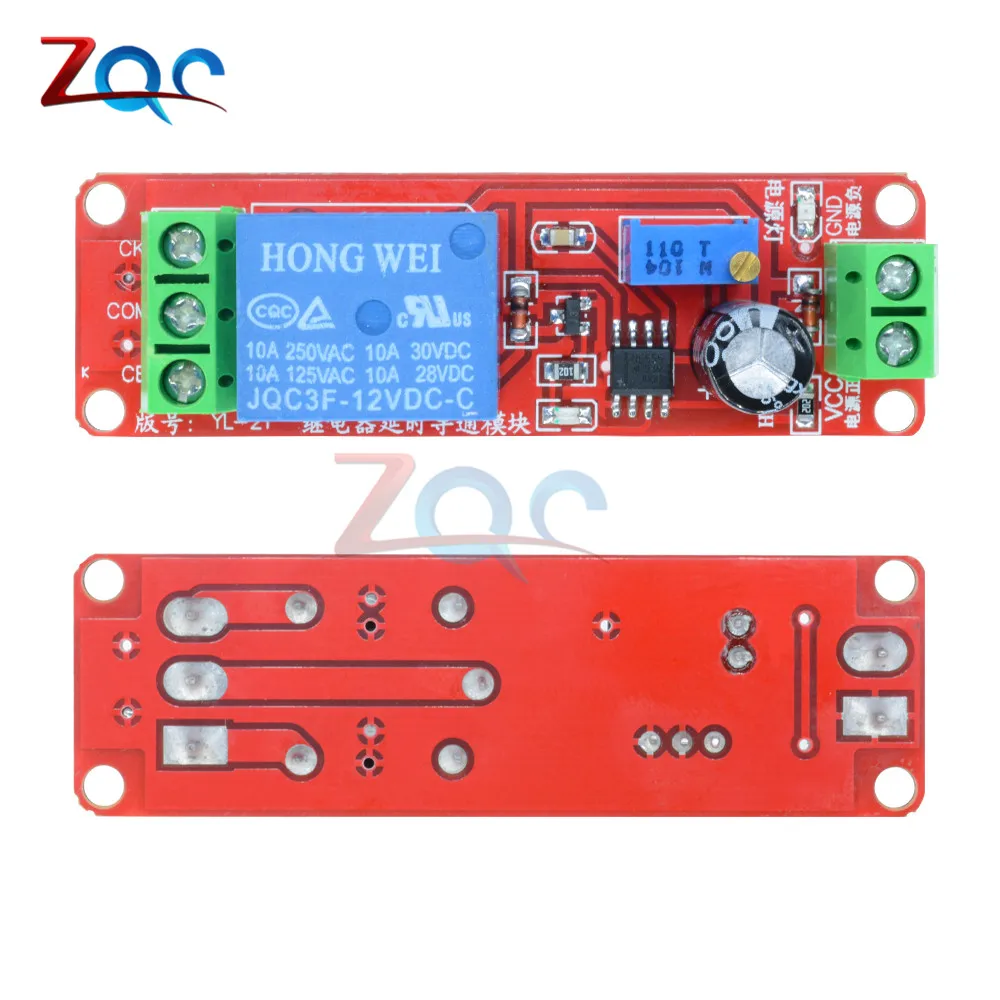

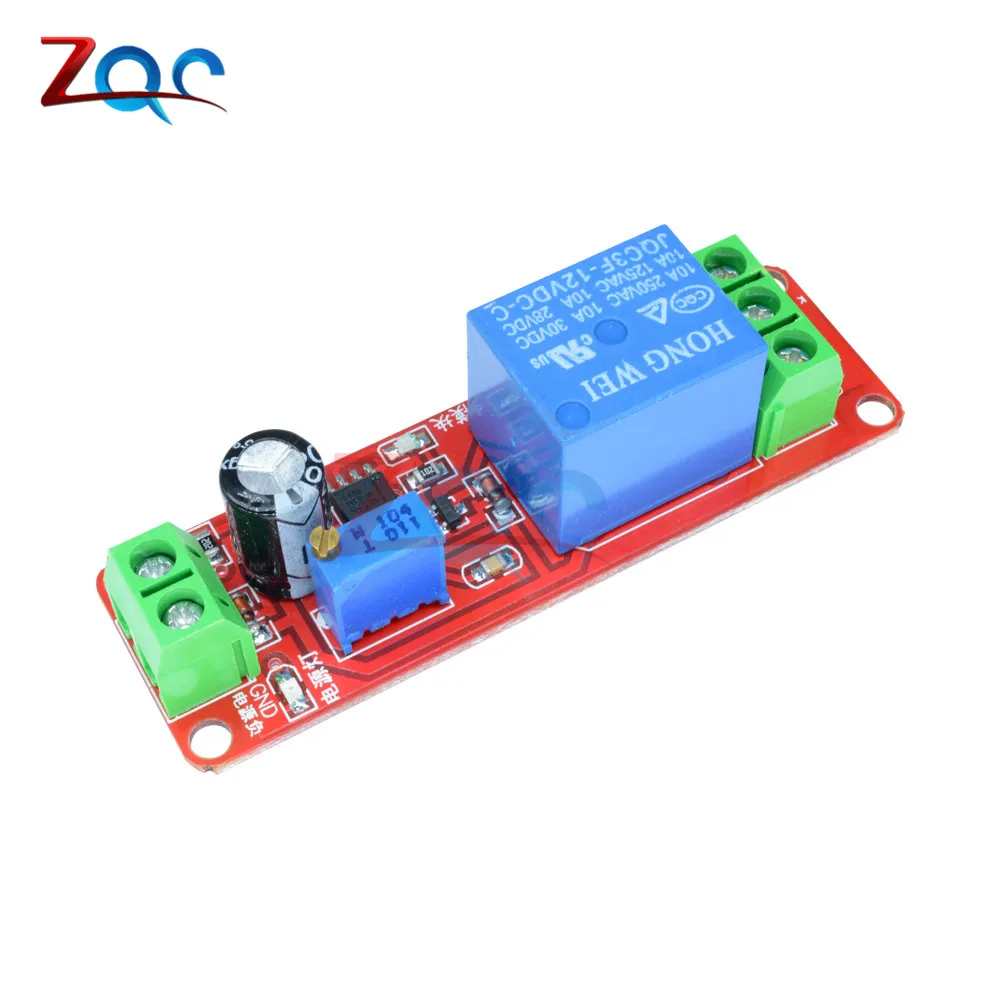

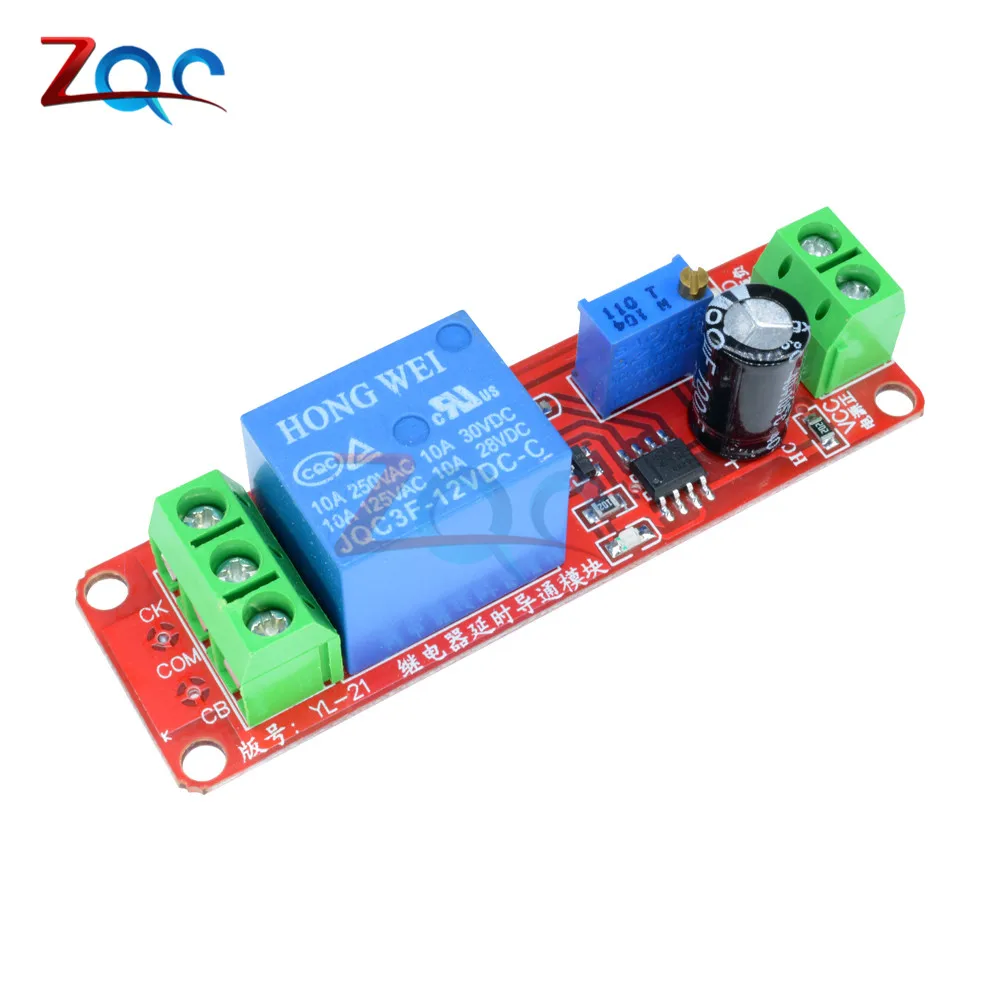

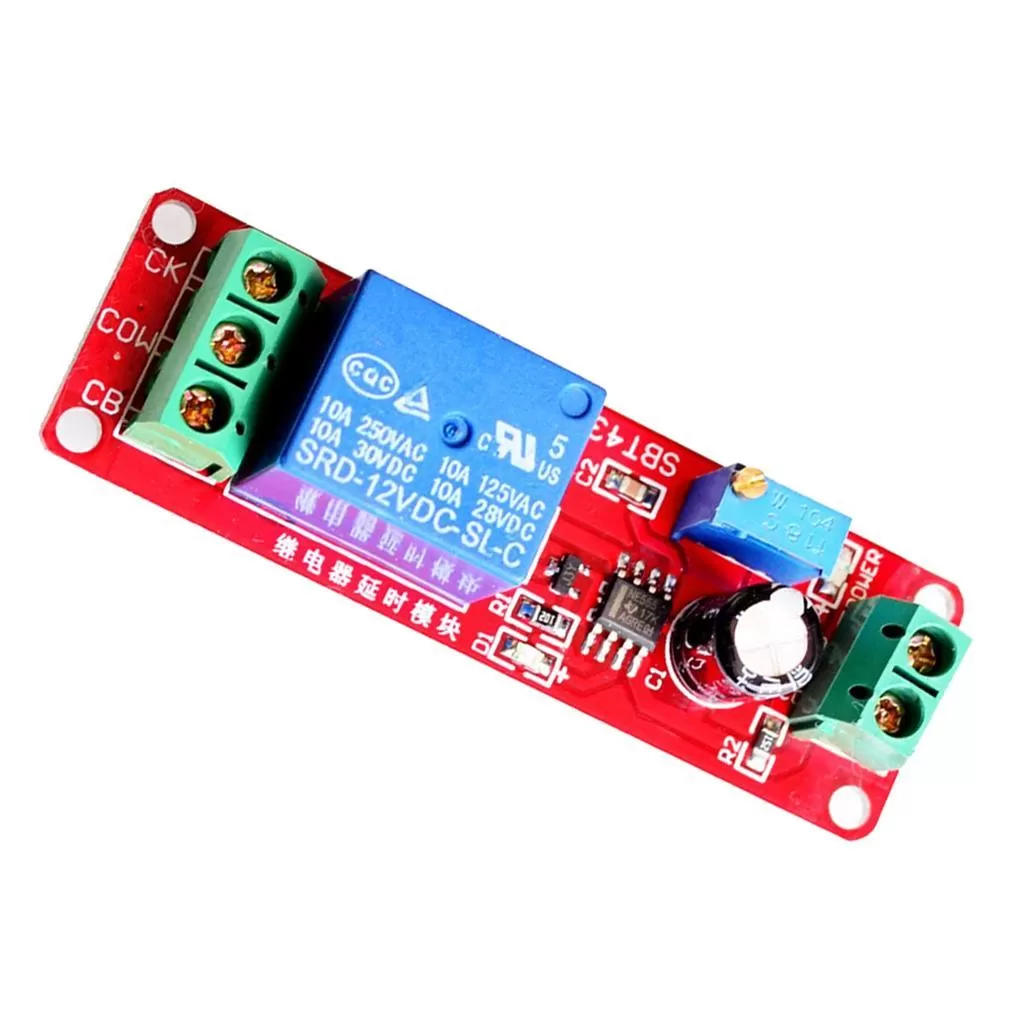

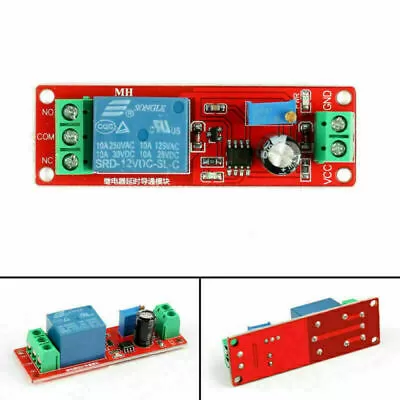

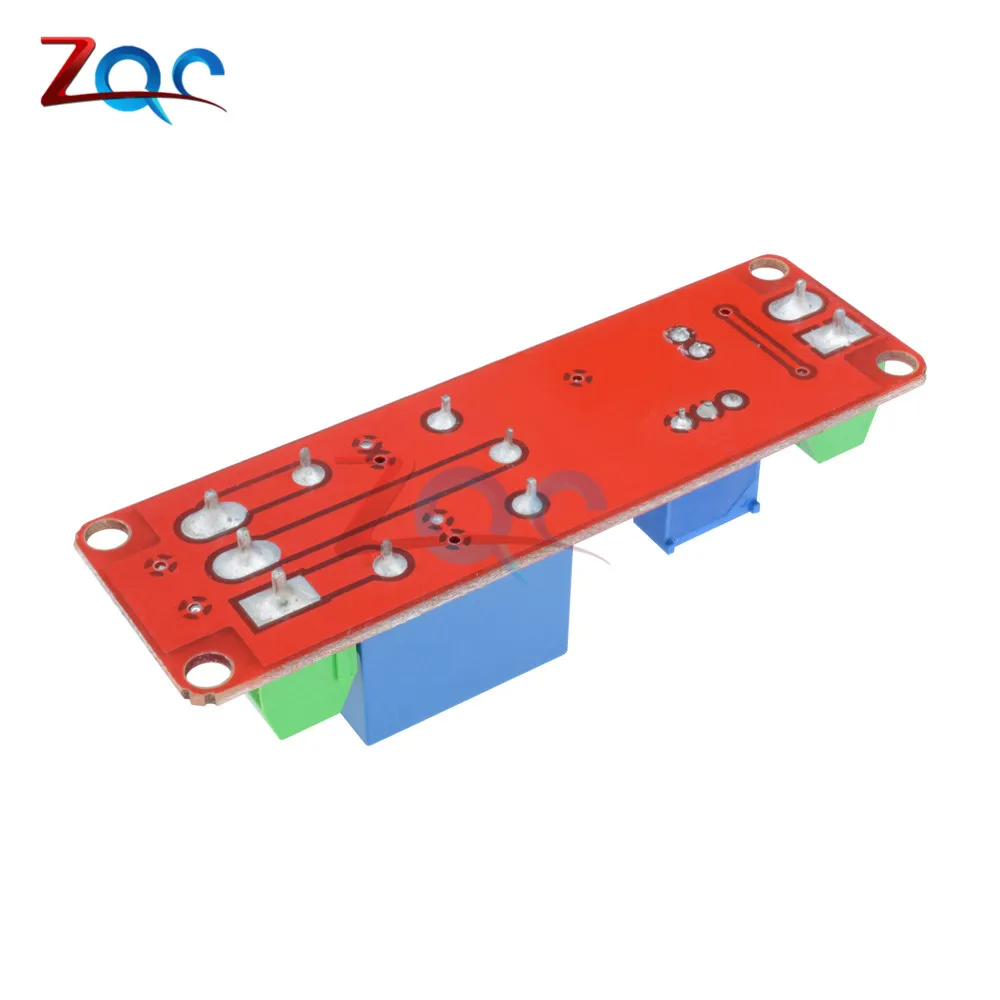

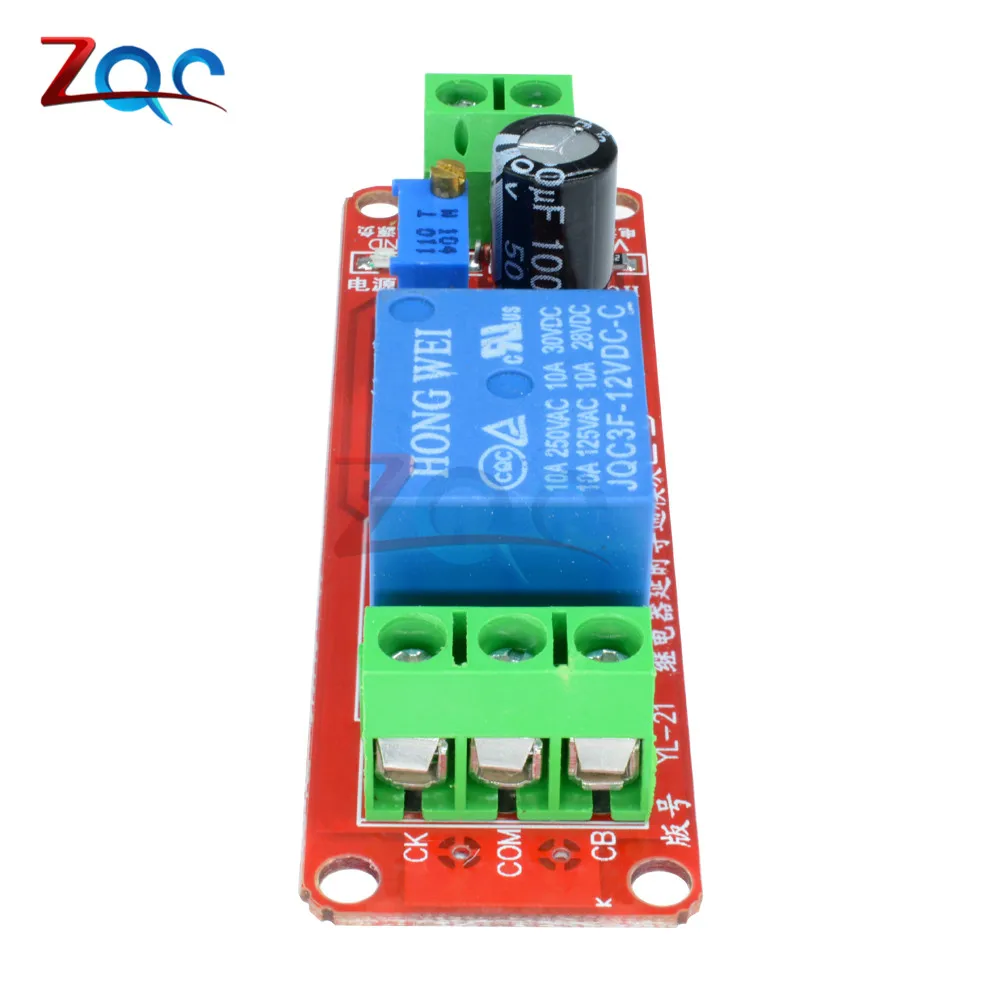

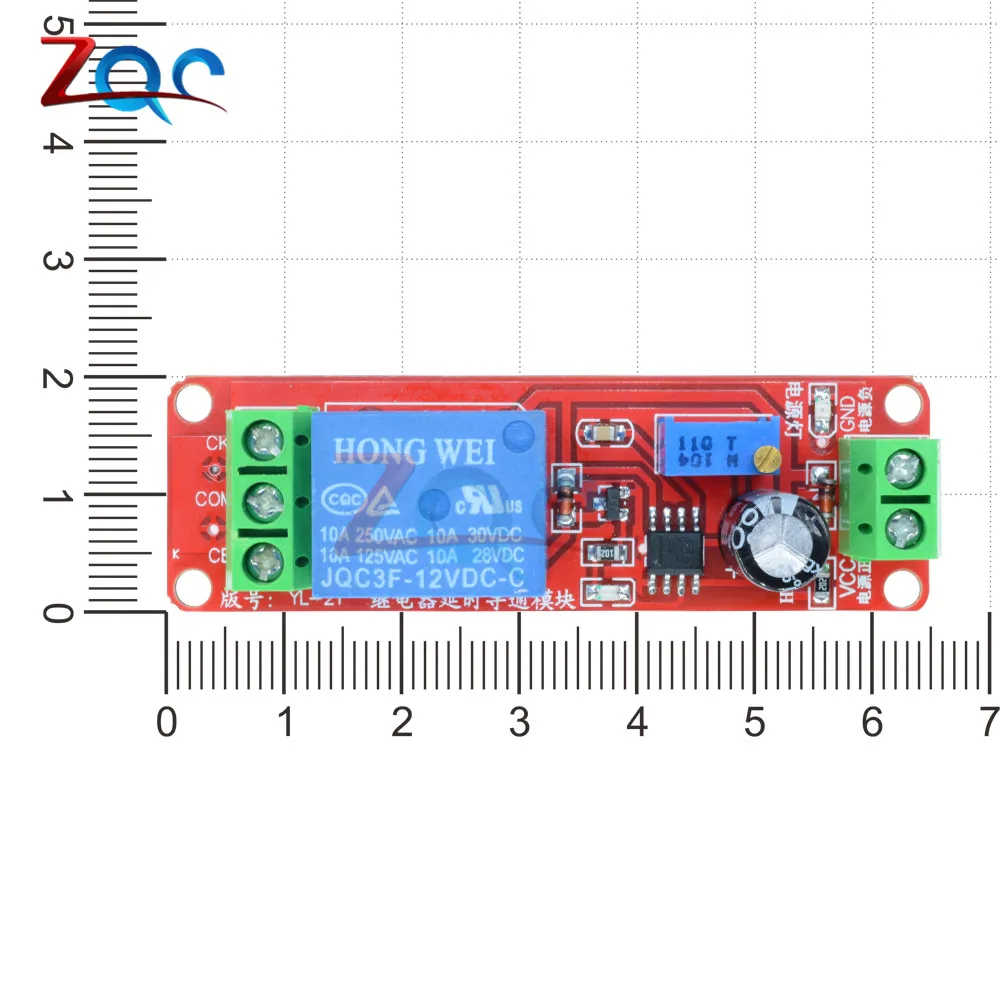

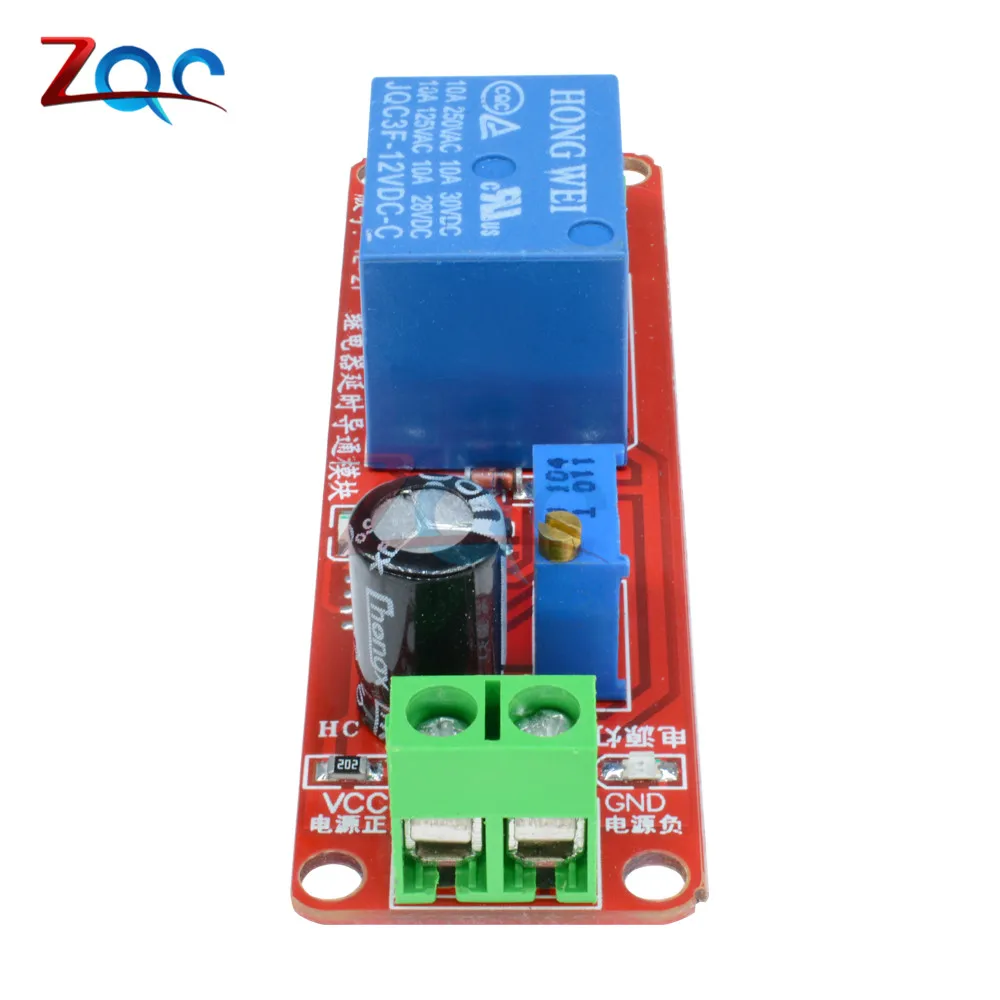

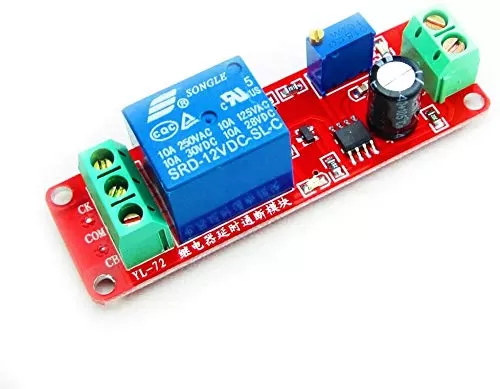

This is a12V/5V Conduction delayrelay module

- This is a brand new and high quality delay turn-on module.

the use of high-performance timing CPU design.

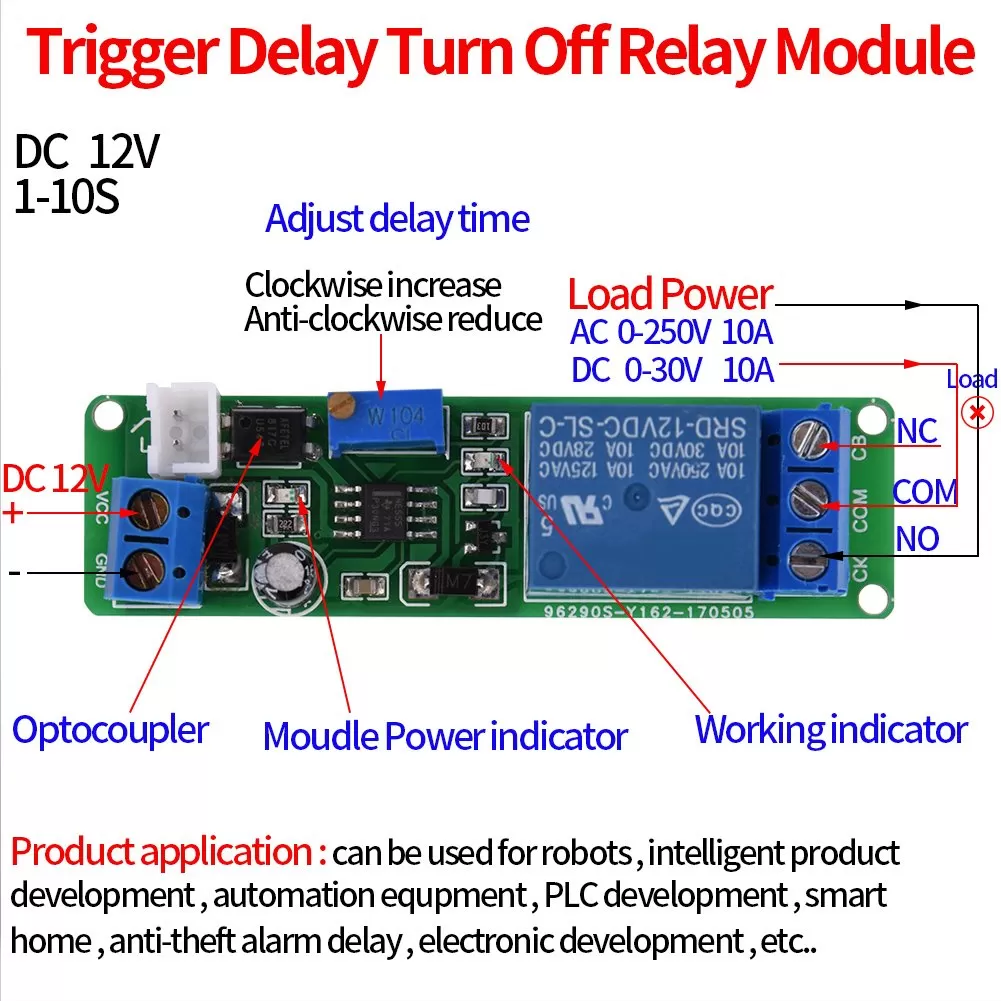

- the power indicator LED and switch trigger timing indication

LEDs;

- The output can be connected to AC 250V 10A DC 30V 10A

load;

- There is the chronopotentiometry regulation time, adjustable

from0 to 10 seconds by default, or by changing the

capacitanceadjustment time longer

For applications of:

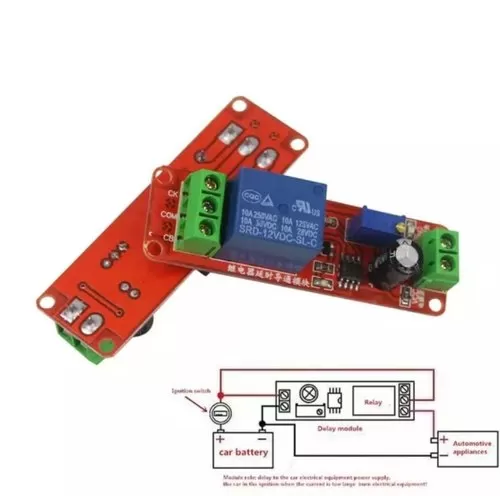

Vehicle equipment-delay to prevent car ignition, prevention of

high sudden current to burn components and devices.

Specification:

1.Module based on: NE555 chip.

2.Delay modue:delay connect module

3.Input voltage: DC12V/DC5V

4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional)

5.Max. load: 2200W

Main Chip (NE555) Characteristics:

1.Timing from microseconds to long hours

2.Simple circuit design

3.Precision Pulse Generation / Timing,

4.Adjustable Duty Cycle

Package Included:

1PCS*DC Delay relay shield Timer Switch Adjustable Module 0 to 10 Second
