Generic HDMI Splitter 1 in 2 Out 1.4 3D HD Video

Product category: HDMI splitter Video amplifier bandwidth: 2.5 Gbps Input video signal level: 1.2 volts p-p Input DDC signal level: 5 volts p-p (TTL) Single connection signal range: 1080p/1920x1200 HDMI connector: Type A, 19-pin female Video output: DVI-I 25-pin female (pure digital) Power supply: 5V DC 110V-240V, 50HZ Power consumption: 5 watts (maximum) Support 30/36 bit deep color, support heavy signal timing, support Blu-ray DVD24/50/60fs/HD-DVD/xvYcc, support 480p, 576p, 720p, 1080i, 1080p, 4K*2K resolution Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD Working principle: One HDMI signal input is allocated to two HDMI outputs HDMI resolution: 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i/4K Application: Assign one HDMI output device to two high-definition display devices with HDMI interfaces. For example, the user can output the signal to connect to the HD projector, DLP, LCD, HD TV series and other equipment at the same time. Scope of application: output the device data source with HDMI interface, such as: PC computer, set-top box, DVD player, notebook, PS3, high-definition TV, etc. Advantages: It has signal buffering and amplification capabilities, supports high-definition video, high-quality, clear, HDTV resolution up to 1080P, fully supports HDMI1.4, supports 3D, supports CEC, and is fully compatible with HDCP1.3

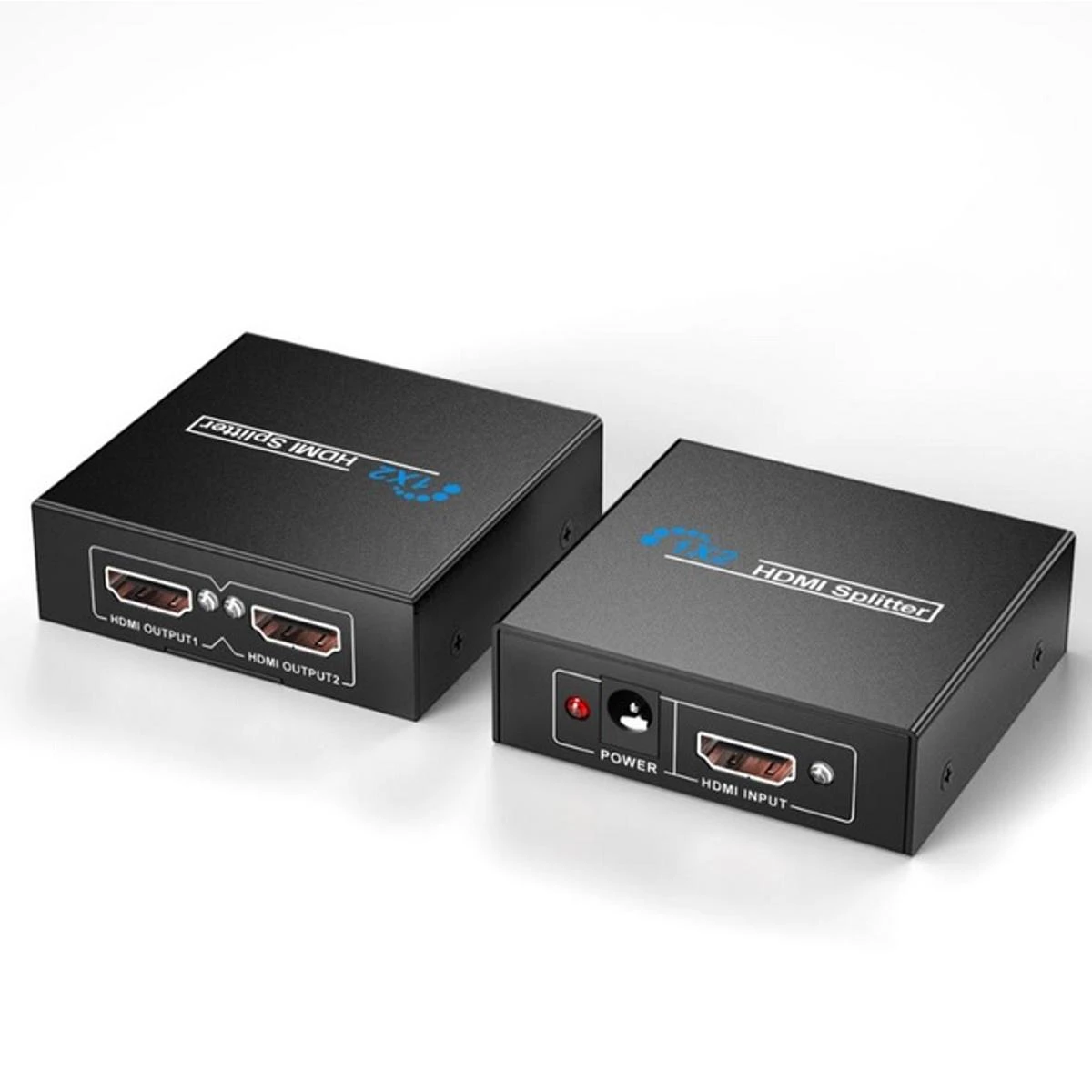

This HDMI splitter takes one HDMI signal input and allocates it to two HDMI outputs, perfect for connecting a single source to two high-definition display devices simultaneously.

• Product category: HDMI splitter
• Video amplifier bandwidth: 2.5 Gbps
• Input video signal level: 1.2 volts p-p
• Input DDC signal level: 5 volts p-p (TTL)
• Single connection signal range: 1080p/1920x1200
• HDMI connector: Type A, 19-pin female
• Video output: DVI-I 25-pin female (pure digital)
• Power supply: 5V DC 110V-240V, 50HZ
• Power consumption: 5 watts (maximum)
• Support 30/36 bit deep color, heavy signal timing, Blu-ray DVD24/50/60fs/HD-DVD/xvYcc
• Supported resolutions: 480p, 576p, 720p, 1080i, 1080p, 4K*2K
• Audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
• HDMI resolution: 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i/4K

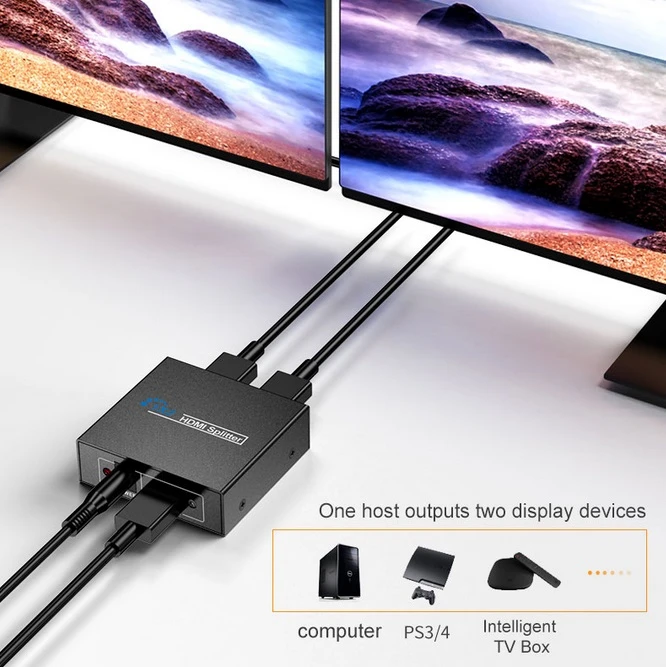

Application: Assign one HDMI output device to two high-definition display devices with HDMI interfaces. For example, you can output the signal to connect to an HD projector, DLP, LCD, HD TV series, and other equipment at the same time.

Scope of application: Compatible with device data sources with HDMI interfaces, such as PC computers, set-top boxes, DVD players, notebooks, PS3, high-definition TVs, and more.

Advantages: Features signal buffering and amplification capabilities, supports high-definition video, delivers high-quality, clear resolution up to 1080P. Fully supports HDMI1.4, 3D, and CEC, and is fully compatible with HDCP1.3.
