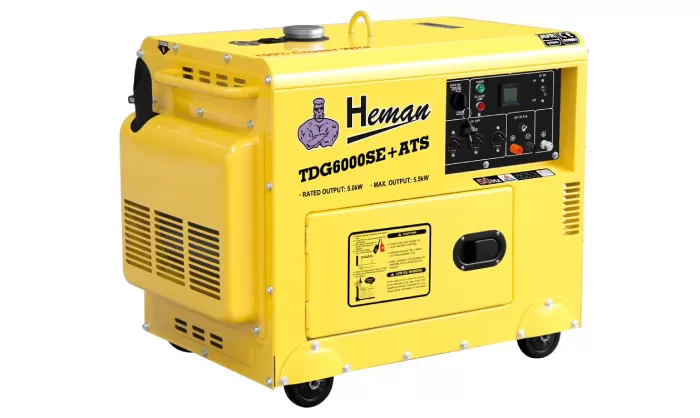

HERMAN-5.0 KW DIESEL GENERATOR +ATS

Heman 5.0kw Diesel Generator + ATS (Yellow)

Model TDG6000SE+ATS

GENERATOR Frequency (HZ) 5060

Max.output (KW) 5.56

Rated output (KW) 55.5

Rated AC voltage (V) 120, 220, 230, 240, 220/380, 230/400, 240/415

Power factor 1

DC output (V) 12V/8.3A

Phase Single Phase

Alternator type Self-excited, 2-pole alternator

Starting system Electric

Noise level (Dba/7m) 68-72

Fuel tank capacity (L) 16

Continuous running time (hr) 8.57.8

ENGINE Engine model HR186FA

Engine type Single-cylinder, vertical, 4-stroke air-cooled diesel engine 单缸，直立，四冲程，风冷柴油机

Bore×Stroke 86×72

Fuel consumption rate (g/kw.h) ≤280

Fuel 0# or -10# light diesel oil 0#-10#

Lubrication oil volume (L) 1.65

Combustion system Direct Injection

STANDARD FEATURES Voltmeter YES

AC output socket

AC circuit breaker YES

Oil warning light YES

Oil alert YES

OPTIONAL FEATURES Digital panel OPTIONAL

Three in one display OPTIONAL

Five in one display OPTIONAL

Remote control OPTIONAL

ATSOPTIONAL

Calculagraph OPTIONAL

DIMENSIONS Packing dimention (LxWxH) (cm) 94×56×74

Gross weight (kgs) 158

20FT loading pcs 2072

40HQ loading pcs 40144
