Generic XN6688 Universal Washing Machine Digital PCB

Universal Washing Machine PCB Circuit Board XN6688 with Digital Display and LED Indicator. Features electronic water level, memory function, imbalance correction, and water recycling. Includes PCB, touch panel, water level switch. For fully automatic washing machines up to 13kg.

This Universal Washing Machine PCB Circuit Board XN6688 is designed to replace various printed circuit boards in fully automatic washing machines. It's a digital board suitable for washing machines up to 13kg.

• With digital display and LED indicator light.
• A variety of programs available.
• Electronic water level, the optional infinite file level, to achieve water-saving purposes.
• Memory function: The controller can remember the last program selected by the user.
• Automatic and manual replenishment function.
• Imbalance Correction function.
• Water recycling function.

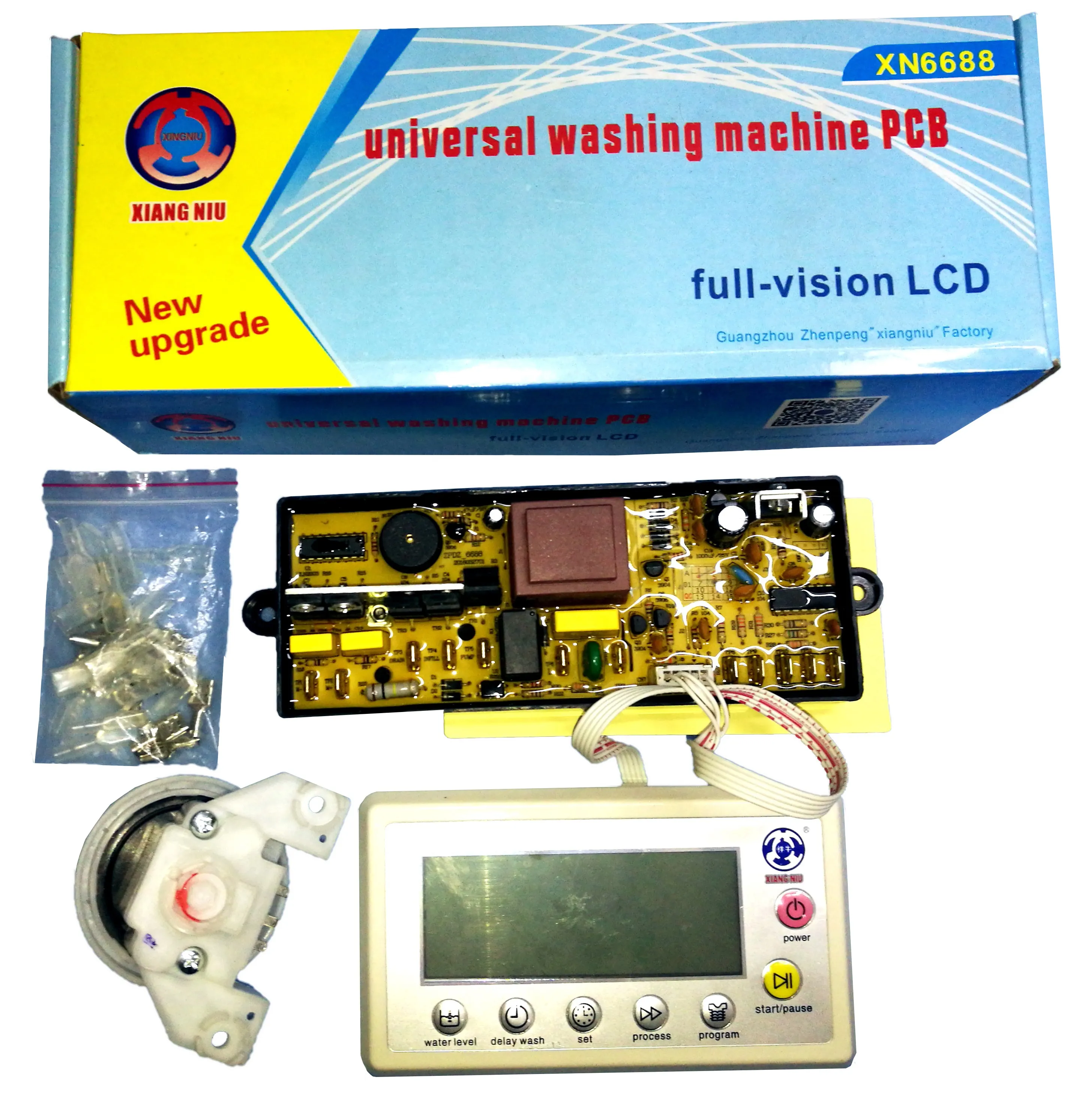

Product includes:

• 1x PCB
• 1x Touch panel
• 1x Water level switch
• Clip & sleeve bag

Technical Specifications:

• Voltage: 230/220VAC15%
• Frequency: 50Hz/60Hz
• Consumption: 5W
• Ambient temperature: -20 - +50, Humidity: under 95% ( at 25 )
• Loading current: For motor control MAX 8A, incoming valve control MAX 4A
• Program time deviation: 1% or under 0.1 second
• Min start voltage: at 170V, at rated loading
