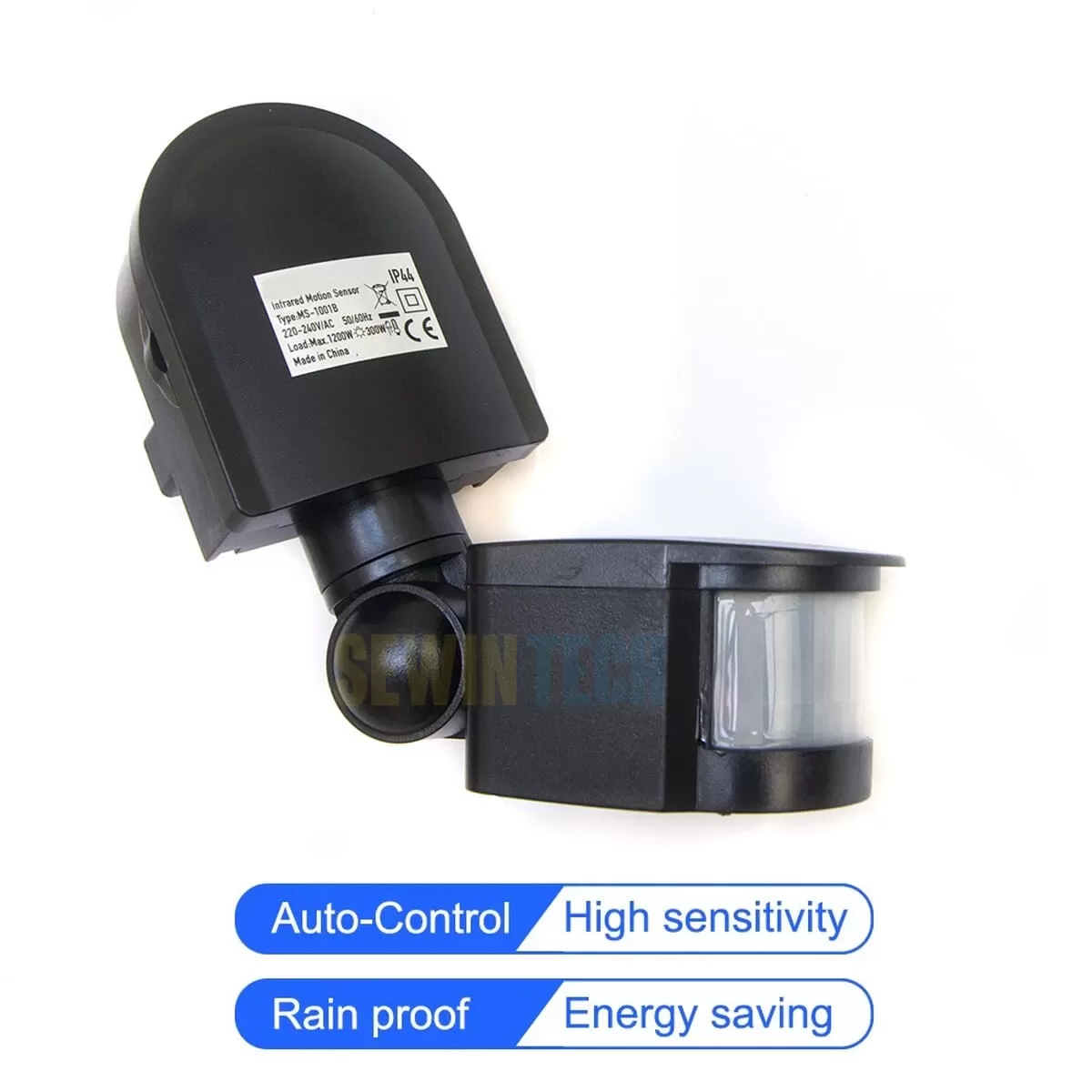

PIR Motion Sensor Detector 230V Adjustable 180 Degree

Sensing distance adjustment range: 5 m -12 meters (SENS knob) Delay time can be adjusted range: 5 seconds -600 seconds (TIME knob) Working time adjustment range: Night work / work day and night (LUX knob) All load power 10A relay control, available energy-saving lamps, LED lamps, incandescent lamps, exhaust fans, solenoid valves, monitoring equipment.

Input voltage: 220-250V

Rated Power: 1200W

Maximum detection distance: 12 meters

The maximum sensing distance of 12 meters, infrared sensing element refers to the maximum detection range, in actual use, it may be due to environmental temperature, installation method, be affected by the position of the detection object, hot and cold airand other factors, the actual detection distance of less than 12 meters.

Sensing distance adjustment range: 5 m -12 meters (SENS knob)

Delay time can be-adjusted range: 5 seconds -60 seconds (TIME knob)

Working time adjustment range: Night work / work day and night (LUX knob)

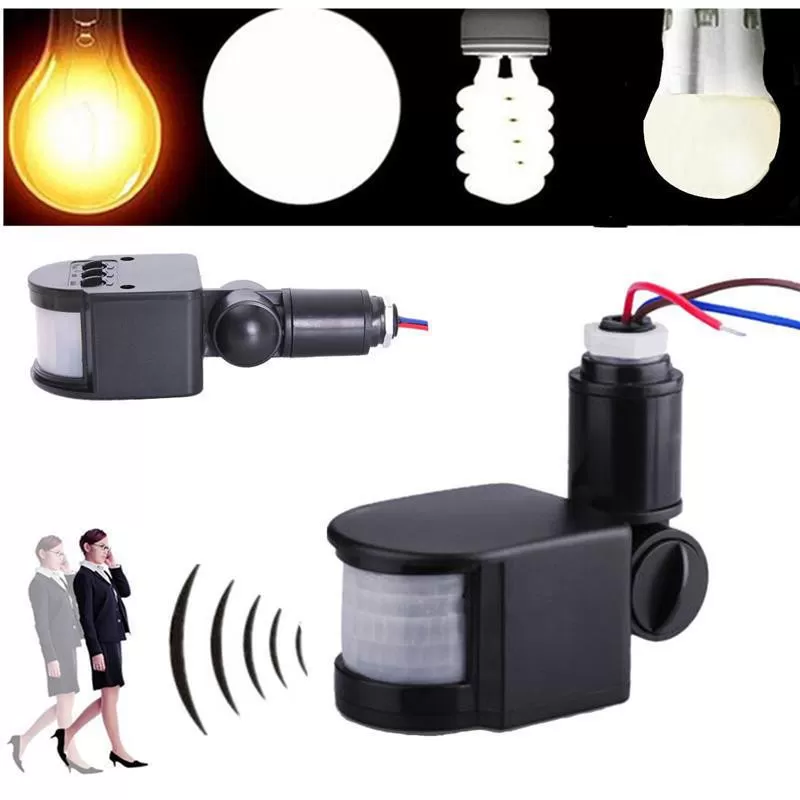

All load power 10A relay control, available energy-saving lamps, LED lamps, incandescent lamps, exhaustfans, solenoid valves, monitoring equipment.

NOTE:

The item can be less-sensitive if you go forward the detector, but it can be

sensitive if you go down the cross section. If the person stop moving under the

motion sensor, it can't light on also. When it is very hot in summer, then temperature

of environment is nearly the same as people, it may not detect well.

Please Note:

Due to hand measure, the size may have 1-4 cm error

Due to Different Monitor, the color may have difference

Package Included: 1 x Infrared Motion Sensor Switch PIR Detector
