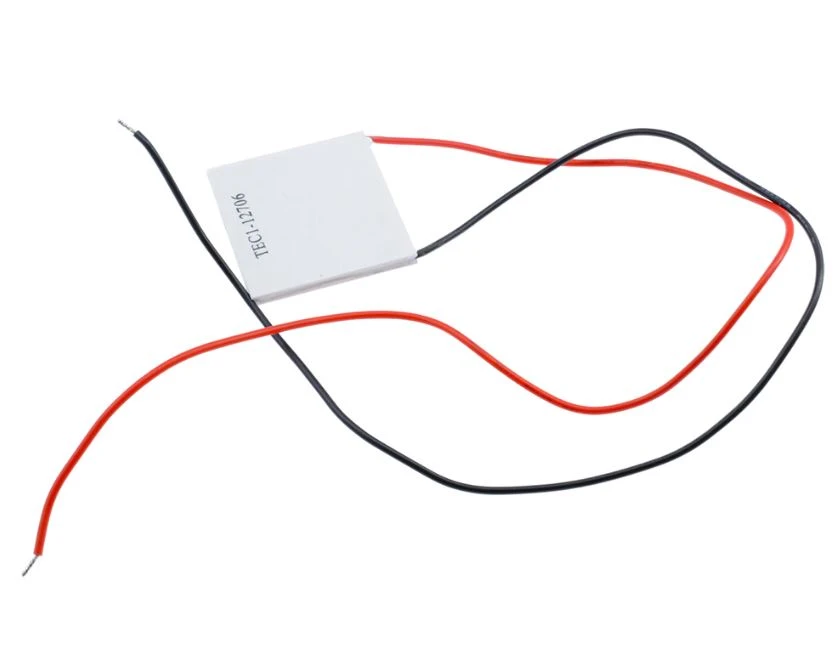

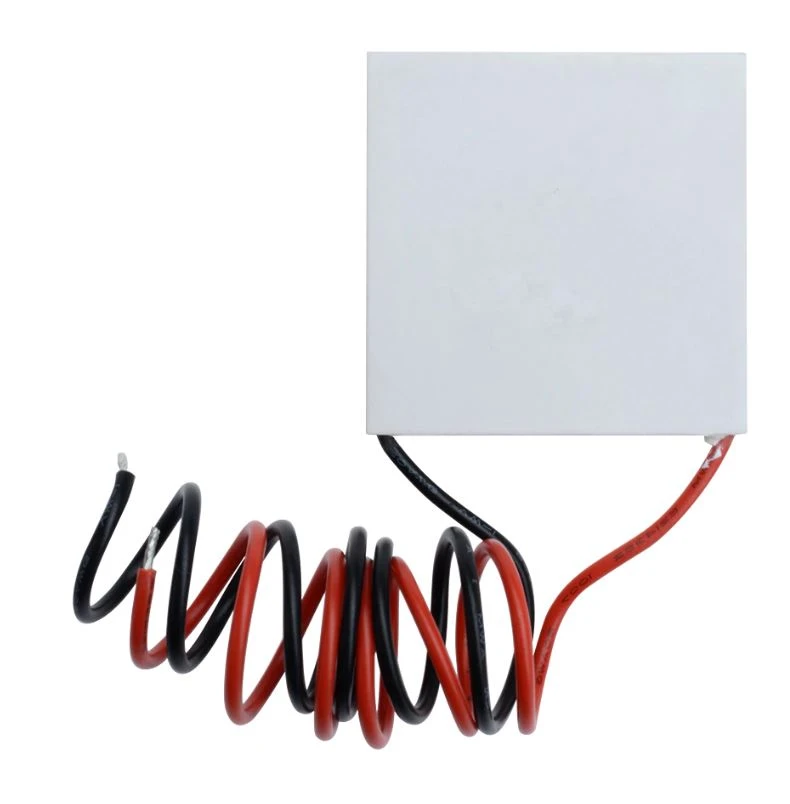

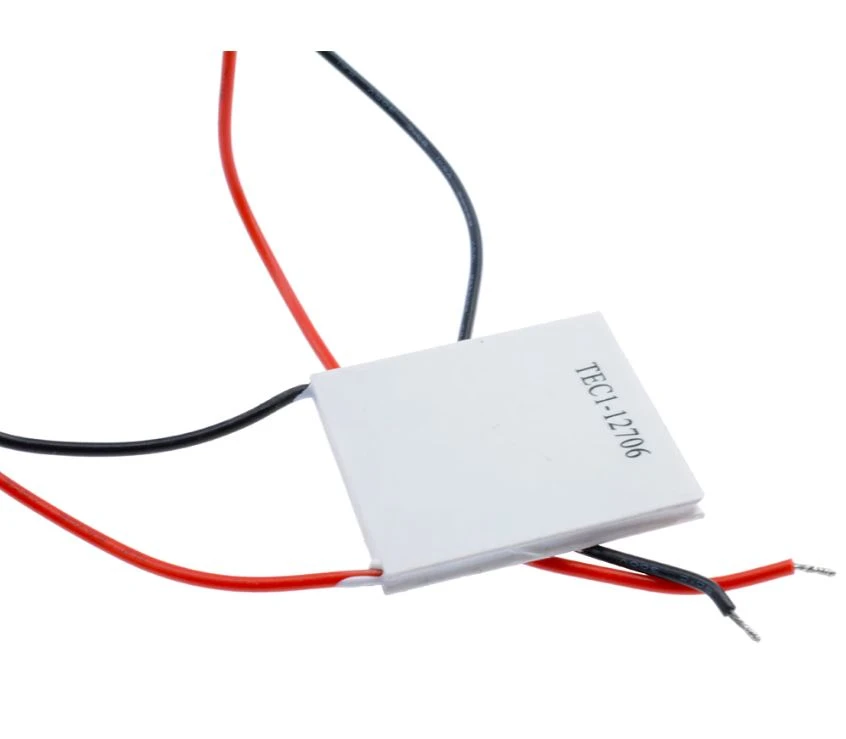

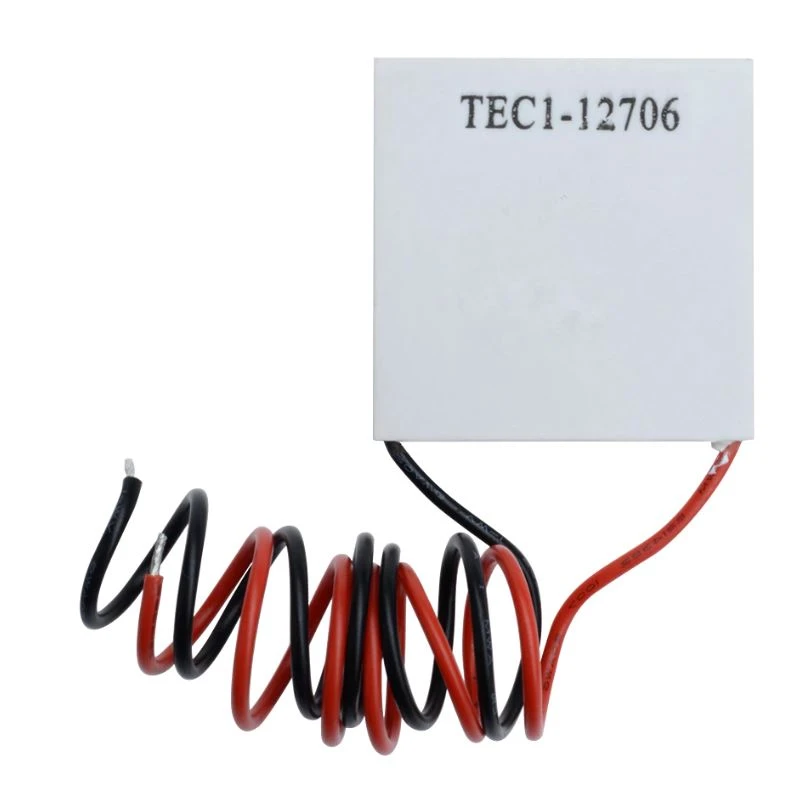

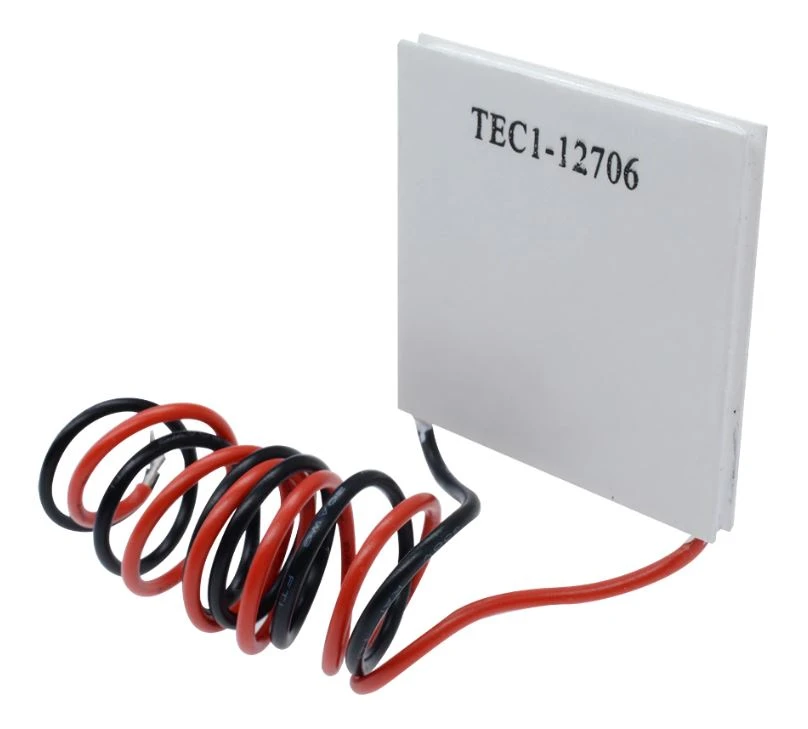

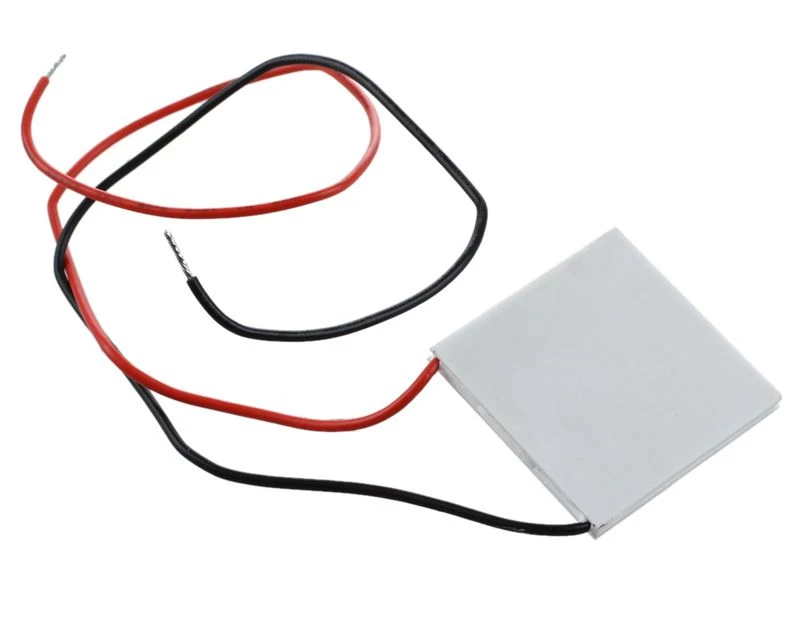

Generic TEC1-12706 Thermoelectric Peltier Cooler Module

Name: Generic TEC1-12706 Thermoelectric Peltier Cooler Module
Brand: No Brand
SKU: 20240526182645
Price: 1650.00 LKR
Availability: InStock

New Seller|SKU: 20240526182645

Chip Type: TEC1-12706 External dimensions: 40 40 3.75mm Internal resistance: 2.1 ~ 2.4 Working current: Imax = 4.3-4.6A (rated at 12V) Rated voltage: 12V (Vmax: 15V starting current 5.8A) Cooling power: Qcmax 55W

13% OffLKR 1,650Regular Price~~LKR 1,890~~

Pay LKR 599.50 × 3 installments with KOKO

Quick Overview

Availability:In stock

Brand:No Brand

What's in the box:TEC1-12706 module

Weight:0.51 KG

100% Satisfaction Guaranteed

Product Specification

Chip Type: TEC1-12706 External dimensions: 40 * 40 * 3.75mm Internal resistance: 2.1 ~ 2.4 (ambient temperature of 23 ± 1 'C, 1kHZ Ac test) The maximum temperature difference: Tmax (Qc = 0) above 59 'C. Working current: Imax = 4.3-4.6A (rated at 12V) Rated voltage: 12V (Vmax: 15V starting current 5.8A) Cooling power: Qcmax 55W Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)

Product Details

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.

Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.

These devices must be used in conjunction with a heat sink to avoid burned.

Each device is full inspected and tested. Fitted with 6-inch insulated leads.
