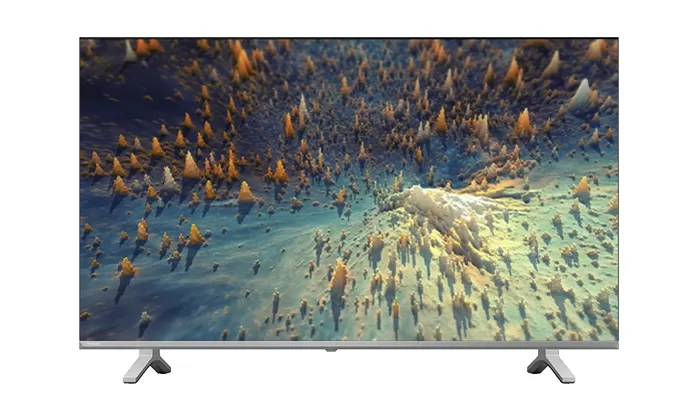

TOSHIBA 32" LED Smart TV

TOSHIBA 32" LED Smart TV

TOSHIBA 32" LED Smart TV

Warranty Terms:

• 3 Years Warranty (12 months for Panel & 36 months for other parts including Main and Power PCB)
• Service charges will be FREE OF CHARGE during the warranty period

Brand & Model Toshiba 32V35KP

Dimensionmm description Without Stand717×428×86

(Width x Height x depth)

With Stand 717×473×186

Packed811×515×129

Weightkg description Without Stand3.8

With Stand3.9

Packed5.7

Wall mount support (option material) NO

Panel

Dimension / Power Consumptions (LCM Spec) 716mm×422mm/30W(white pattern）

Supplier (LCM/Open Cell) CSOT Open Cell

Type No JHD315X1H83-T0L2K1

BacKGight Type (E-LED /D-LED) D-LED

FeatureTurbo LED NO

Surface Treatment (Glare / Anti-Glare) Anti-Glare

120(100)Hz/240(200)Hz 50/60HZ

Wide Color Gamut NO

10bit / 8bit 8bit

Back light Scan NO

Blinking NO

Local Dimming NO

3D NO

Pixel Format (H x V) 1366*768

Visible Area (mm) : H x V 697.685x392.256

Diagonal Screen Size (inches) 31.5

Pixel Pitch (mm) 0.17025 (H) x 0.51075(W)

Brightness (nit) 250cd/ ㎡ (Typ.)

Contrast Ratio 3000:1(Typ.)

Viewing angle Conventional (CR>10) (degrees) H:178º,V:178º

Response Time (ms)Conventional 6.5 ms

Back Light Life (hours) 30000H

Composition Analog +Digital

Digital Broadcasting Signal YES

ATSC NO

CABLE YES

DVB-T / T2 YES

DVB-S / S2 YES

DVB-C / C2 YES（Only DVB-C）

Video FormatMPEG-2SD (MP@ML)YES

HD (MP@HL)YES

MPEG-4SD (H.264 AVC Lv3.0)YES

HD (H.264 AVC Lv4.0)YES

H.265 YES

AVCHD NO

Audio FormatMPEG-1 Layer Ⅰ/Ⅱ YES

MPEG-2 Layer Ⅰ/Ⅱ YES

Dolby Digital YES

Dolby Digital Plus YES

AAC YES

Analog Broadcasting Signal

PAL YES

SECAM yes

NTSC NO

Auto Signal Booster NO

Data BroadcastingMHEG-5 / Ginga etc. NO

Hybrid cast NO

Subtitle (Closed Caption) YES

Audio Description YES

MTSNICAM YES

A2 NO

EIAJ NO

BTSC NO

TeletextFLOF / TOP YES

Memory Page NO

Character languagePan-Euro NO

Greek NO

Cyrillic NO

Arabic YES

Farsi YES

Level NO

Composite VideoPAL 50/60Hz YES

SECAM YES

NTSC YES

Component Video480i /480p/720p/1080i (60Hz) NO

576i /576p/720p/1080i (50Hz) NO

1080p NO

PC Input (D-Sub)VGA (640 x 480) NO

S-VGA (800 x 600) NO

XGA (1024 x 768) NO

S-XGA (1280 x 1024) NO

1920x1080p NO

HDMIVideo format480i (60Hz) / 576i (50Hz) yes / yes

480p (60Hz) / 576p (50Hz) yes / yes

720p (24/30/50/60Hz) NO /NO / yes / yes

1080i (60Hz) / 1080i (50Hz) yes / yes

1080p (24/25/30/50/60Hz) YES / YES / YES /YES/ YES

Audio formatL-PCM / AC3 / AAC yes / yes / yes

Output Support Signals

Video (CVBS) YES

Analog audio/Digital audio NO

Audio Encoder/ TranscodeDolby Digital YES

DTS YES

Headphone Socket (3.5mm) YES

Main System

Main ProcessorSoC Name MSD6683

OS Andriod

Software UpdateOver-Air / Internet / Service Port(USB) USB

Software Upgrade Check YES

AC InputAC-Input Voltage 100-240V 50/60Hz

AC Adopter NO

AC Plug type 2PIN

AC Cable Length 1.55m

POWER CODE TAG (caution label) NO

PowerTypical (W) <50W

ConsumptionStandby (W) <0.5W

On-mode power consumption (W) 30

Annual power consumption (kWh/y) 44

ErP Class G


120(100)Hz/240(200)Hz Drive(100/120Hz converter is on board (not panel side)) NO

Clear Scan/Clear Frame NO

Resolution+SD -> HD / HD -> HD conversion system NO

4k Super Resolution (4k超解像) NO

Active BacKGight Control (DynaLight) YES

MegaDCR (Back light off when black signal frame) NO

Color Management YES

Static Gamma YES

Dynamic Gamma (Contrast booster) YES

10 Point White Balance NO

Cinema Mode3-2 / 2-2 Pull downON/OFF function NO

Game Mode YES

Comb FilterPAL YES

NTSC YES

Noise Reduction(except PC)DNR / Auto DNR YES/YES

MPEG NR yes

Picture mode user,Standard,vivid,sport.movie,game,energy saving

Intelligent Scene Optimizer NO

Picture Size SelectNon over scan mode (Just scan mode) YES

ManualRF_Analog/Video480i/576iYES

RF_Digitaｌ288i/288p/576i/576p/720pYES

1080i/1080pYES

HDMIAV formatNO

PC formatNO

3840 x 2160 NO

4096 x 2160 NO

Auto Format YES

4:3 Stretch YES

Color Space Adjust (Auto LUT) YES

Auto Color calibration NO

Auto Gamma calibration NO

Manual Color calibration YES

Color Temperature 3 modes

(Low,Medium,High)

FeatureSRS WOW / SRS WOW HD NO

TruSurround / TruSurround XT YES

Audyssey ABX / Base XT Buss boost NO

Audyssey EQ / CONEQ NO

Audyssey Dynamic Volume　(option: Night/Day/Off mode) NO

Audyssey Volume extension NO

Dolby YES

DTS YES

Others NO

Surround YES

EQ YES

Sound Mode Standard,Sports,Movie,Music,User,Vivid,News

Sound Navi (Wall and Table) NO

OMAKASE (Effect based on stream) NO

Smart Sound Equalizer NO

Bass Boost YES

Power Sound Equalizer NO

Speakers Pet Name / Construct Two Speakers

Main (L/R) Size / pcs 2pcs

Tweeter NO

Woofer Construct NO

Woofer Speaker Size /pcs NO

Speaker Impedance 6 ohm

Output Power RMSMain ( L/R ) 8W +8W

(10% HD/7%THD in China)

Tweeter NO

Woofer NO

Network

DLNADMP / DMR / DMS NO/NO/NO

DTCP-IP NO

Windows 7 applicable NO

Format media　(Refer to Multimedia format） NO

Skype NO

Voice control by Skype camera NO

Gesture control by Skype camera NO

Open BrowserBrowser Name Puffin

HTML 5.0 YES

Bluetooth NO

Active 3D Glasses NO

RCU, Keyboard (HID) YES

Audio / Voice YES/NO

Object Push / Basic Imaging (Picture from Smartphone/Tablet is transmitted to TV) NO

Incoming Message (SMS/MMS incoming is shown on TV) NO

Smart Home (Echonet Lite) NO

Wi-FiBuilt-in /Dongle YES/NO

IEEE802.11n YES

WPS ver2.0 NO

Wi-Fi Display (Miracast Src) NO

Wi-Fi Display (Miracast Sink) NO

Wi-Fi Direct YES

WiDi (4.0) NO

Wake on LAN/Wake on WLAN YES

Home ControlControl4 NO

Crestron NO

Echonet lite NO

Search Portal NO

Web NO

DLNA (DMS) NO

Media Player (USB) YES

EPG YES

MediaGuide (Rovi) NO

TV Broadcast EPG YES

Genre search NO

IPTVWidget/Apps NO

TEE (Trusted Executive Environment) for support Netflix YES

CSPNetflix Yes

YouTube Yes
