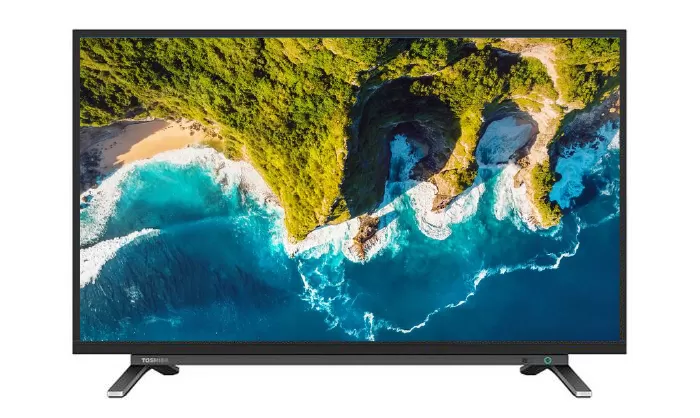

TOSHIBA 32'' LED TV

TOSHIBA 32'' LED TV

Warranty Terms:

• 3 Years Warranty (12 months for Panel & 36 months for other parts including Main and Power PCB)
• Service charges will be FREE OF CHARGE during the warranty period

Brand & ModelToshiba 32L3965

Dimension

(Width x Height x depth)mm descriptionWithout Stand730*443*73

With Stand730*478*186

inch descriptionWithout Stand28.7*17.4*2.9

With Stand28.7*18.8*7.3

Weightkg descriptionWithout Stand 4.20

With Stand 4.30

Panel

Dimension / Power Consumptions (LCM Spec)730*429mm/30W(white pattern）

Supplier (LCM/Open Cell) CSOT Open Cell

BacKGight Type (E-LED /D-LED) JHD315V1H81-T0L2

BacKGight Type (E-LED /D-LED) D-LED

FeatureTurbo LED NO

Surface Treatment (Glare / Anti-Glare) Anti-Glare

120(100)Hz/240(200)Hz 60Hz

Wide Color Gamut NO

10bit / 8bit 8bit

Pixel Format (H x V) 1366X768

Visible Area (mm) : H x V 697.685x392.256

Diagonal Screen Size (inches) 32.00

Pixel Pitch (mm) 0.17025(H) x 0.51075(W)

Brightness (nit) 275cd/ ㎡ (Typ.)

Contrast Ratio 3000:1(Typ.)

Response Time (ms)Conventional 6.5ms

Back Light Life (hours) 30000H

Composition Analog+Digital

Digital Broadcasting Signal YES

CABLE YES

DVB-T / T2 YES

DVB-S / S2 YES

DVB-C / C2 YES

CI+ YES

Video FormatMPEG-2SD (MP@ML)YES

HD (MP@HL)YES

MPEG-4SD (H.264 AVC Lv3.0)YES

HD (H.264 AVC Lv4.0)YES

H.265 YES

Audio FormatMPEG-1 Layer Ⅰ/ⅡYES

MPEG-2 Layer Ⅰ/ⅡYES

Dolby DigitalYES

Dolby Digital PlusYES

AACYES

Analog Broadcasting Signal

PAL YES

SECAM YES

NTSC YES

Composite VideoPAL 50/60Hz YES

SECAM YES

NTSC YES

HDMIVideo format480i (60Hz) / 576i (50Hz)yes / yes

480p (60Hz) / 576p (50Hz)yes / yes

720p (24/30/50/60Hz)NO /NO / yes / yes

1080i (60Hz) / 1080i (50Hz)yes / yes

1080p (24/25/30/50/60Hz)NO / NO / NO / yes / yes

Audio formatL-PCM / AC3 / AACyes / yes / yes

Output Support Signals

Analog audio/Digital audio NO/YES

Audio Encoder/ TranscodeDolby Digital YES

Main System

Main ProcessorSoC Name MSD3666LSAT-U9

Software UpdateOver-Air / Internet / Service Port(USB) USB

Software Upgrade Check YES

AC InputAC-Input Voltage 100-240V 50/60Hz

AC Adopter NO

AC Plug type 2PIN (EA/EV)

AC Cable Length 1.55m

PowerTypical (W)<50

ConsumptionStandby (W)<0.5

Active Standby (W)0.30

On-mode power consumption (W)37.00

Annual power consumption (kWh/y)54.00

ErP ClassA


Comb FilterPAL YES

NTSC YES

Noise Reduction(except PC)DNR / Auto DNR yes /yes

MPEG NR yes

Picture mode Dynamic，Standard，mild，personal

ManualRF_Analog/Video480i/576iYES

RF_Digitaｌ288i/288p/576i/576p/720pYES

1080i/1080pYES

HDMIAV formatYES

PC formatYES

4:3 Stretch YES

Color Temperature 3 modes

(Cool, standard, Warm)

Dolby YES

Surround YES

EQ YES

Sound Mode Standard, Music, Movie, Sports,Personal

Smart Sound Equalizer YES

Bass Boost YES

Speakers Pet Name / Construct Two Speakers

Main (L/R) Size / pcs 2pcs

Speaker Impedance 6 ohm

Output Power RMS

(10% HD/7%THD in China)Main ( L/R ) 8W +8W

HDD, PVR function

PVR / PVR Ready

Record into USB HDD / USB memory NO / YES

Time Shift YES

EPG schedule recording YES

Set start/end time recording YES

MPEG2/H.264 Transcoder YES

Terminals

Antenna Input 2.00

VIDEO/AUDIO

Input PortCVBS,L/R(Mono L)1

HDMI terminals2.00

USB2.00

OutputAudioFixed / VariableNO

DigitalYES

Headphone Socket (3.5mm) YES

Service Port Program update USB

Others features

Panel Lock (Key side lock) YES

Channel Manual sorting and renumber yes(sorting)

Media PlayerMovieDLNA / USB / SD Cardno / yes / no

PhotoDLNA / USB / SD Cardno / yes / no

MusicDLNA / USB / SD Cardno / yes /no

USB Supported

file systemFAT16yes

FAT32yes

NTFS (NT File System)YES

Container /FormatMovieYES

MusicYES

PhotoYES

HDMIVer.1.4aARC (Audio Return Channel)YES

CEC One Touch PlayYES

Basic featuresRouting ControlYES

StandbyYES

System InformationYES

Remote Control pass-through (Option)YES

Speaker Mute YES

TimerOn / Sleep / Game yes / yes / NO

Program TimerReminder / Recording (output to SCART) YES, no SCART

Parental Control / V-chip YES/NO

No Signal Off / Mute yes(include external input) / yes

Blue Screen YES

Setting of Factory Release English

Hotel Mode YES

Clone YES

Integrated Test Pattern yes

Automatic Power down YES

Clock YES
