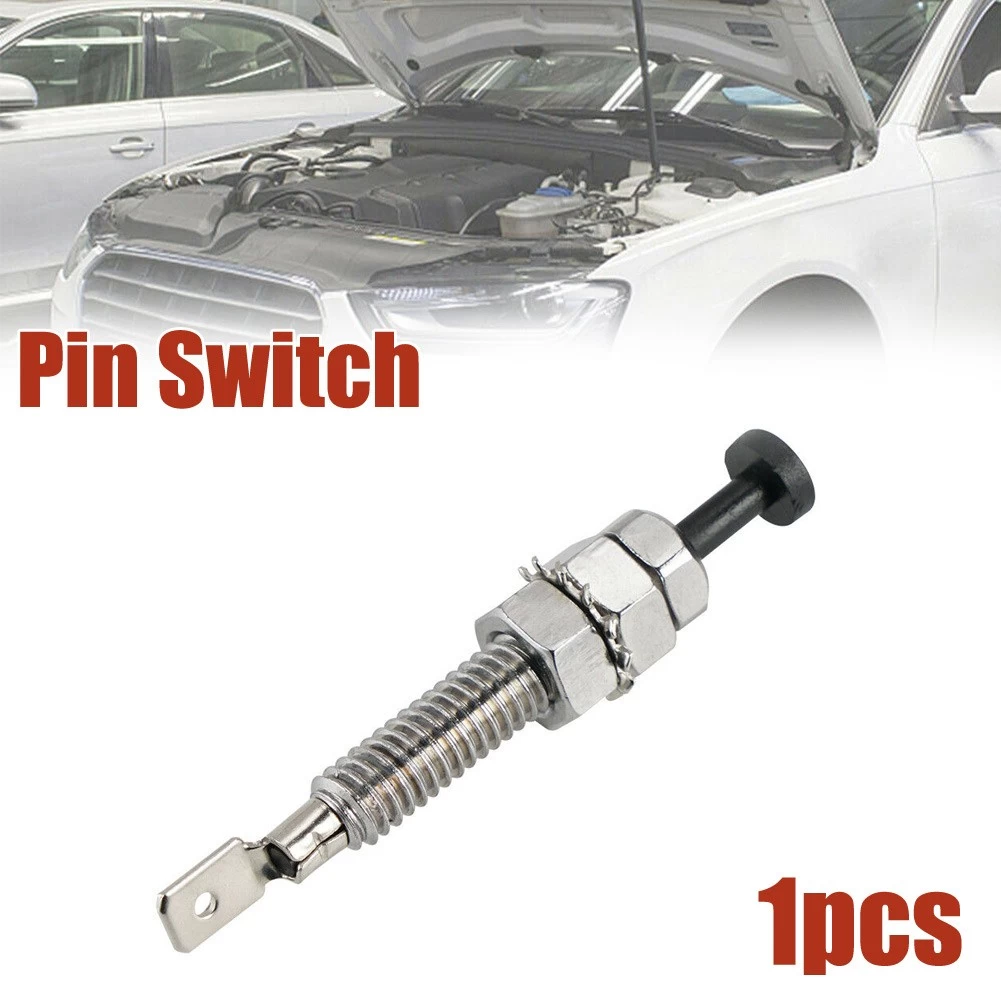

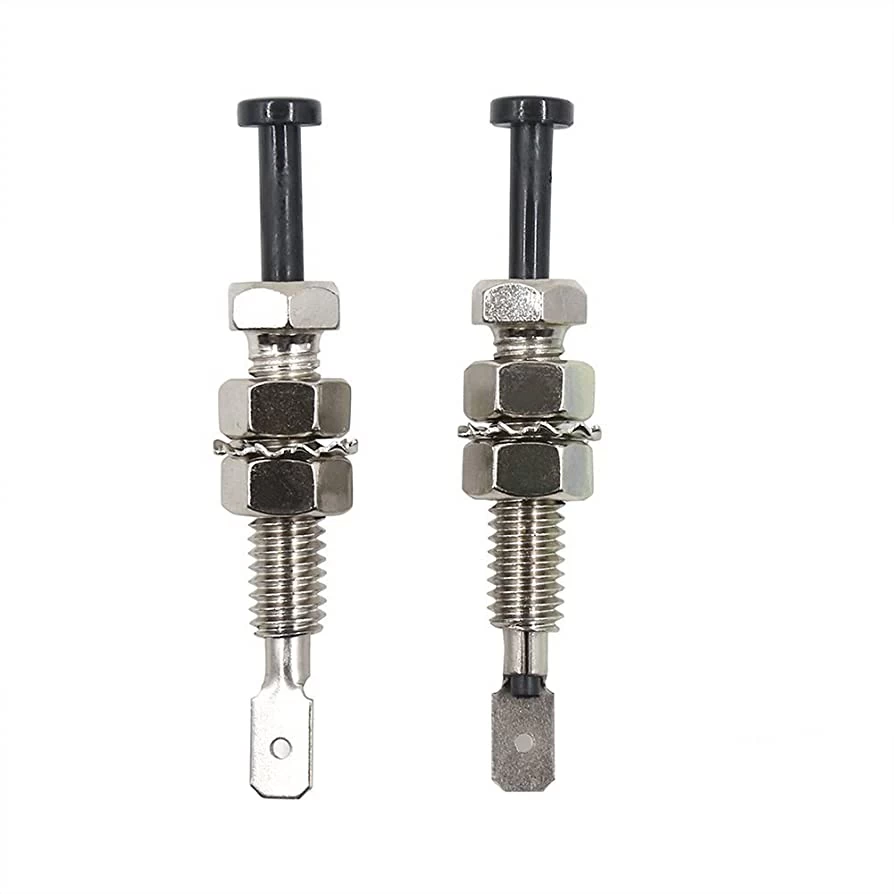

Universal Adjustable Auto Truck Hood Door Pin Switch
Features: The door switch is chrome-plated. The push rod actuator is made of plastic. GM truck electronic pin switch. Function: The door pin switch is designed to switch instantaneously. The rated current is 20A 12VDC. Size: The mounting hole size is 0.31 inch...
Pay LKR 359.70 × 3 installments with KOKO Quick Overview
Features: The door switch is chrome-plated. The push rod actuator is made of plastic. GM truck electronic pin switch.
Function: The door pin switch is designed to switch instantaneously. The rated current is 20A 12VDC.
Size: The mounting hole size is 0.31 inches (8 mm). The total length is 2.83 inches (70.5 mm). Adjust the length by moving the two locking screws.
Application: Door pin switches are widely used in car dome light/hood intrusion switch/car switch trunk notification.
Product Details
Description:
- Features: The door switch is chrome-plated. The push rod actuator is made of plastic. GM truck electronic pin switch.
- Function: The door pin switch is designed to switch instantaneously. The rated current is 20A 12VDC.
- Size: The mounting hole size is 0.31 inches (8 mm). The total length is 2.83 inches (70.5 mm). Adjust the length by moving the two locking screws.
- Application: Door pin switches are widely used in car dome light/hood intrusion switch/car switch trunk notification.
specification:
Rating: 20A 12VDC
Contact resistance: 50mΩ max
Dielectric strength: 1500VAC for 1 minute
Insulation resistance: 100mΩ min (500VDC)
Working temperature: -25℃~+85℃
Power life: ≥ 10,000 cycles
Mechanical life: ≥ 100,000 cycles
Notes:
1. Transition: 1cm = 10mm = 0.39 inches
2. Due to manual measurement, please allow 0-3cm error.
3. Due to differences between monitors, the pictures may not reflect the actual color of the item. Thanks!
Package Included:
1pcs x door switch screw
