Features:

• LED display

PID control

• During 25~42°C, the accuracy can be 0.1°C.

• Widely applied to various equipments and places that need to control temperature accurately, such as incubator, heating equipment in the laboratory etc.

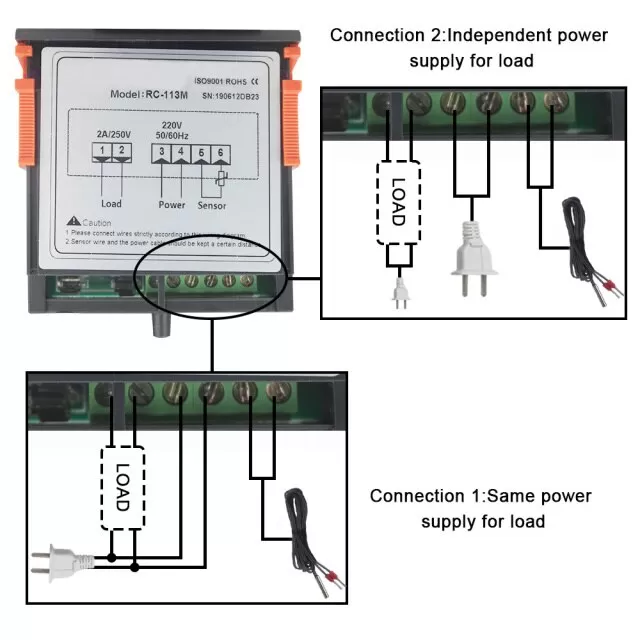

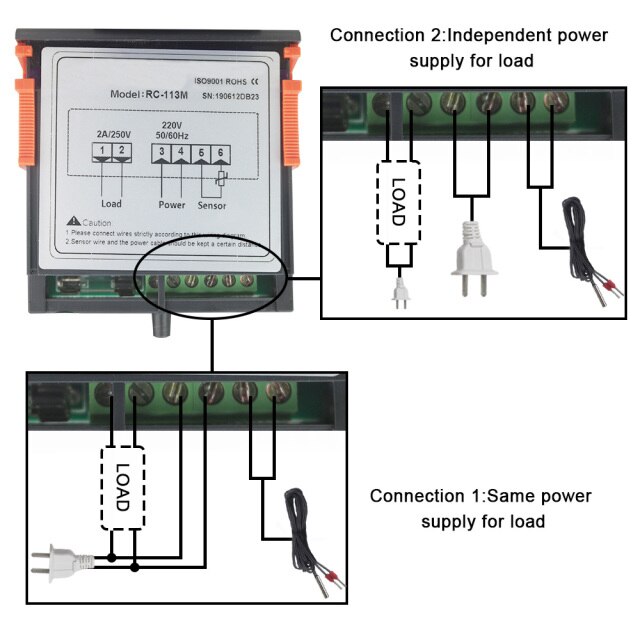

• There is no any output voltage of the controller , it is like a switch , you
  need to connect a power supply to the load, then it can work.

• Parameters:

• Temperature measuring range: -40~110°C

• Temperature controlling range: -10~100°C

• Load capacity:≤2A/220V/50HZ/440W

• Power options: 220VAC/50HZ

• Input: 1 NTC sensor; sensor wire: 2m(standard)

• Measure Accuracy: ±0.1°C (during 25~42°C); ±0.5°C(other range 25~42°C);

• Control Accuracy: ± 1°C

• Resolution: 0.1°C

• Consumption: ≤3W

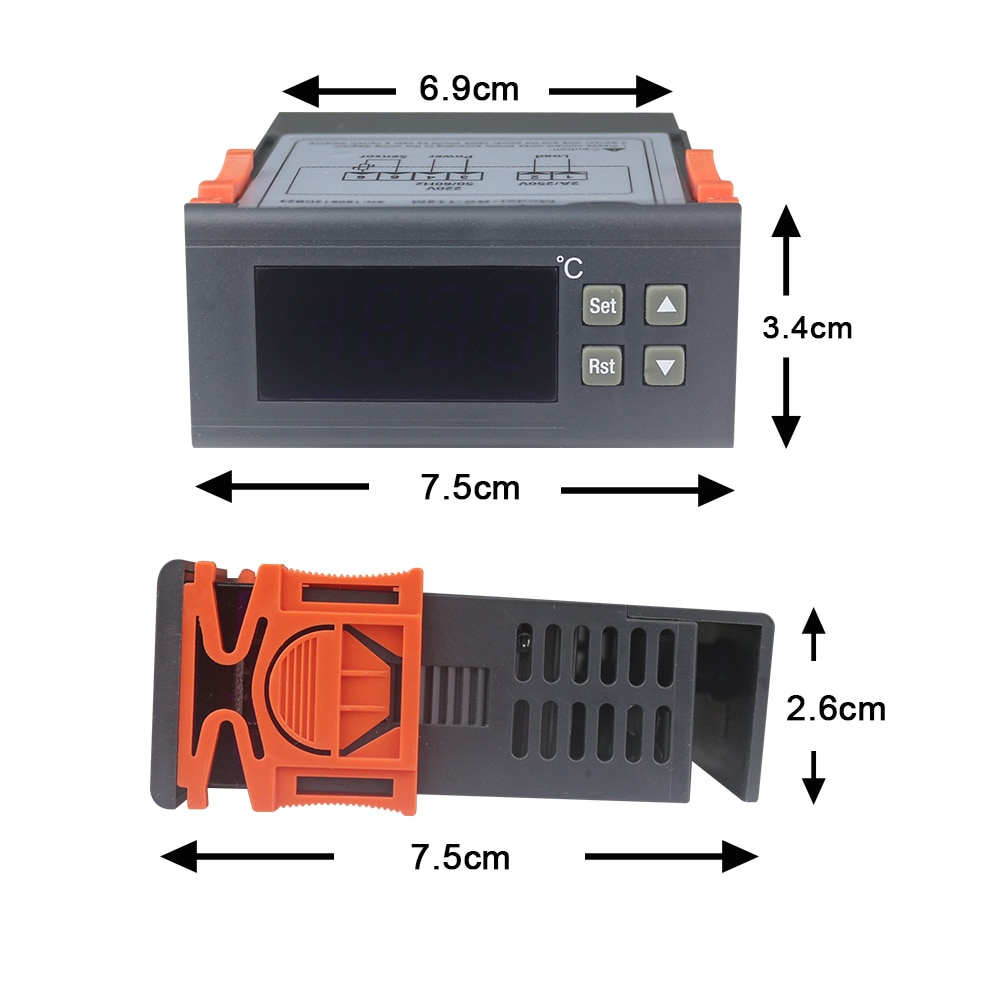

• Cut-out size: 71×29(mm)

• Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

• Function Menu:

Code Function Setting Range Default Unit

F01 Set low limit -10~set temp. -10 °C

F02 Set high limit Set temp.~100 100 °C

F03 Calibration -7~7 0 °C

Applications:

• Refrigeration industry(freezers, refrigerators, , Cold stores, cold chain, iceboxes, cooling towers, water coolers, oil coolers, cold water chillers, water chilling units etc.)

• HVAC industry (Heating Ventilation Air Conditioning)

• Pet industrial: Aquariums, fish tanks, terrariums, seafood machines, Vivariums, Paludariums, Incubators etc.

• Medical thermostatic equipment (for blood, drugs, Pharmaceutical etc.)

• Food processing (Brewing, Abattoirs etc.), Food Wholesale, Food Retail (Hypermarkets, Supermarkets, Convenience Stores, Food Shops, Charcuteries, Delicatessens etc.)

• Solar water-heating system central controller

• Sauna room, foot bath, foot sauna, foot massager etc.

• Wine production, wine cabinet, display cabinet etc.

• Catering (Hotels, Restaurants, etc.)

• Agriculture

• Automobile

• Photography

• Process control

• Laboratory, Chemical

• Greenhouses, cultivating-houses

• Ice-skating rinks

• Energy management

• Other industries need temperature measuring and controlling

Package Includes:

• 1 * Temperature Controller( no including retail box )

• 1 * 2m Temperature sensor

• 1 * Instruction Manual

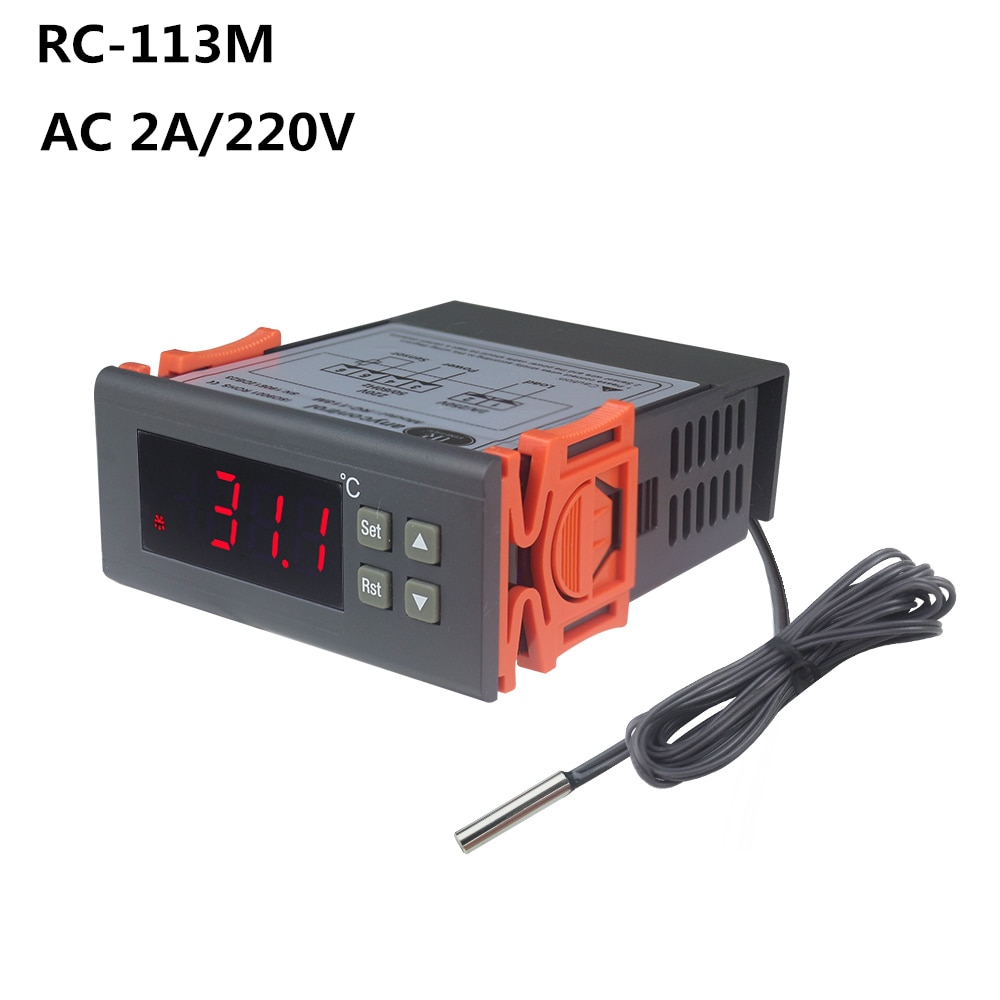

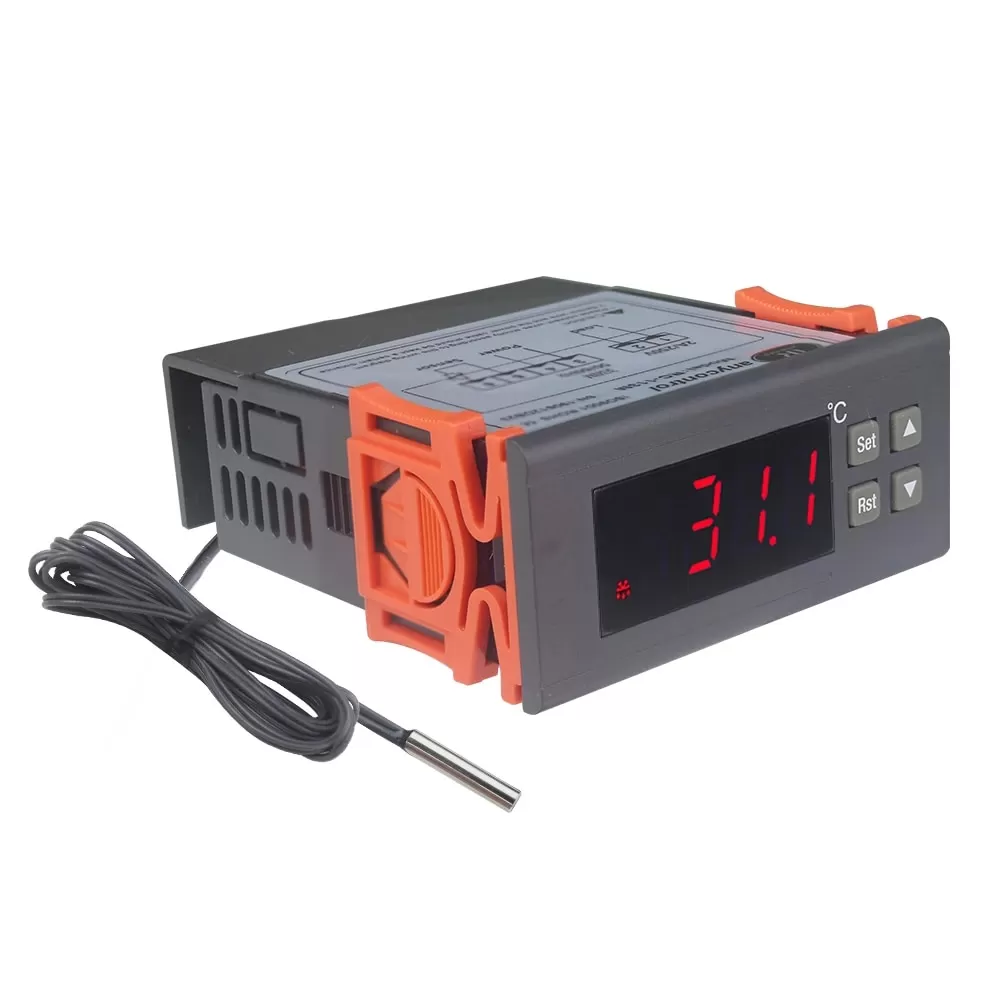

RC-113M AC 220V 2A PID Temperature Controller for Heating Digital Thermostat Regulator Termostato for Incubator Lab -40~110C

Features:

• LED display

PID control

• During 25~42C, the accuracy can be 0.1C.

• Widely applied to various equipments and places that need to control temperature accurately, such as incubator, heating equipment in the laboratory etc.

• There is no any output voltage of the controller , it is like a switch , youneed to connect a power supply to the load, then it can work.

• Parameters:

• Temperature measuring range: -40~110C

• Temperature controlling range: -10~100C

• Load capacity:2A/220V/50HZ/440W

• Power options: 220VAC/50HZ

• Input: 1 NTC sensor; sensor wire: 2m(standard)

• Measure Accuracy: 0.1C (during 25~42C); 0.5C(other range 25~42C);

• Control Accuracy: 1C

• Resolution: 0.1C

• Consumption: 3W

• Cut-out size: 7129(mm)

• Ambient requirements: temperature: -10~60C; humidity: 20~85% (No condensate)
