Generic RC-113M PID Temperature Controller for Heating

RC-113M AC 220V 2A PID Temperature Controller for Heating Digital Thermostat Regulator Termostato for Incubator Lab -40~110°C - Features: LED display PID control During 25~42°C, the accuracy can be 0.1°C. Widely applied to various equipments and places that need to control temperature accurately, such as incubator, heating equipment in the laboratory etc. There is no any output voltage of the controller , it is like a switch , you need to connect a power supply to the load, then it can work.

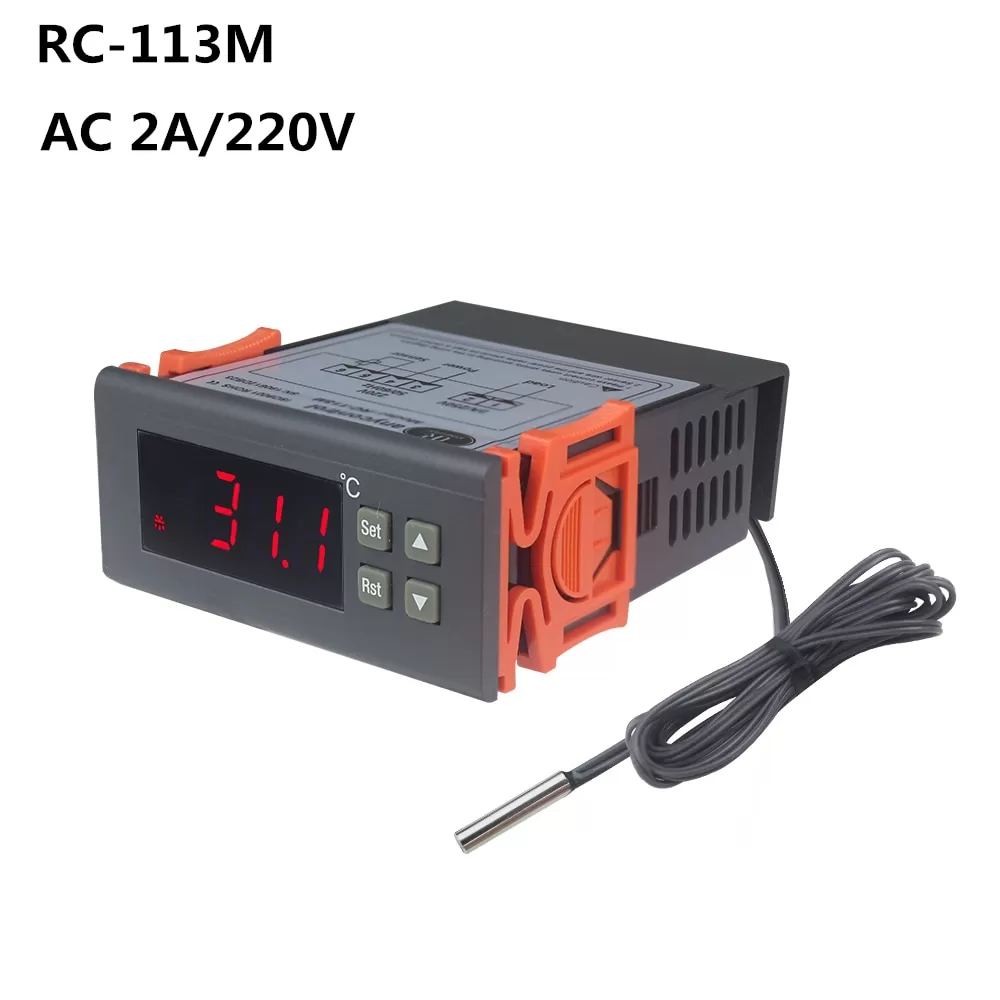

RC-113M AC 220V 2A PID Temperature Controller for Heating Digital Thermostat Regulator Termostato for Incubator Lab -40~110C

Features:

• LED display
• PID control
• During 25~42C, the accuracy can be 0.1C.
• Widely applied to various equipments and places that need to control temperature accurately, such as incubator, heating equipment in the laboratory etc.

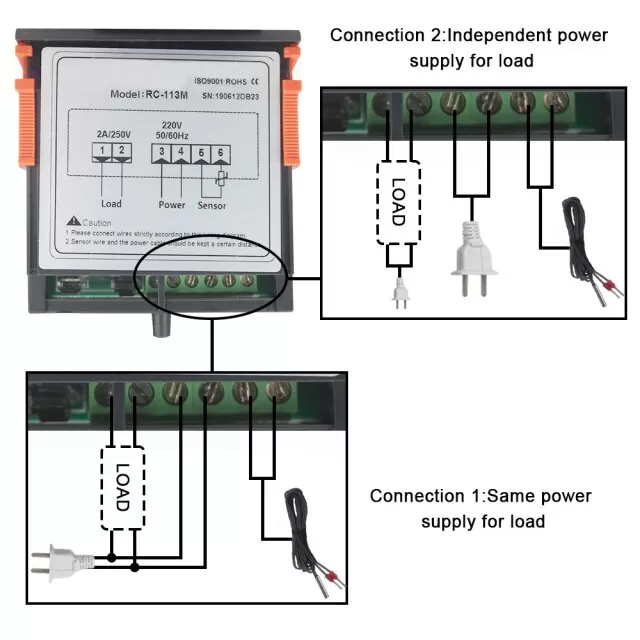

• There is no any output voltage of the controller, it is like a switch, you need to connect a power supply to the load, then it can work.

Parameters:

• Temperature measuring range: -40~110C
• Temperature controlling range: -10~100C
• Load capacity: 2A/220V/50HZ/440W
• Power options: 220VAC/50HZ
• Input: 1 NTC sensor; sensor wire: 2m(standard)
• Measure Accuracy: 0.1C (during 25~42C); 0.5C(other range 25~42C);
• Control Accuracy: 1C
• Resolution: 0.1C
• Consumption: 3W

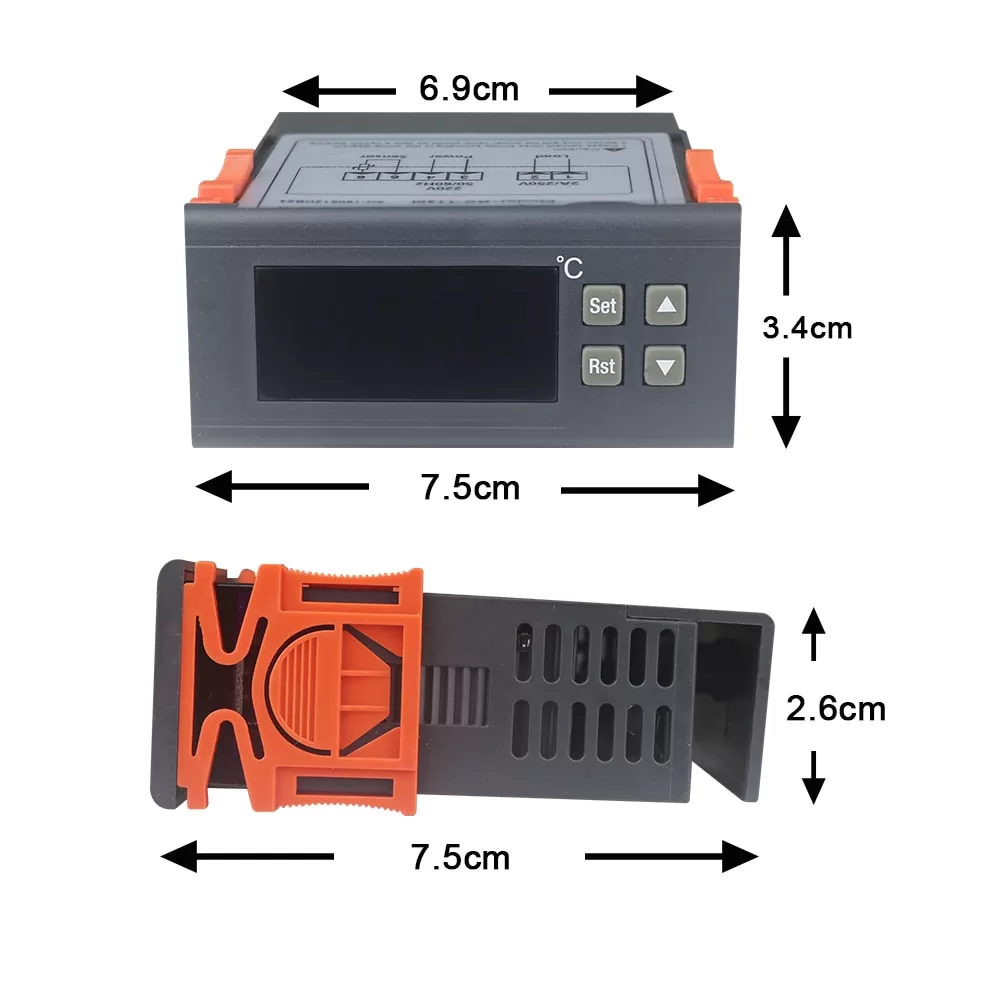

• Cut-out size: 7129(mm)
• Ambient requirements: temperature: -10~60C; humidity: 20~85% (No condensate)
