Generic V520 Engine Diagnostic Scanner OBD2 Fault Reader

2024 V520 Automotive engine Diagnostic Scanner Detector DC 9V-16V Code Reader OBD2 Function Car Fault Diagnosis Tester Check Engine Auto Scan Tool

The V520 Engine Diagnostic Scanner is a versatile tool designed for automotive engine fault diagnosis and maintenance.

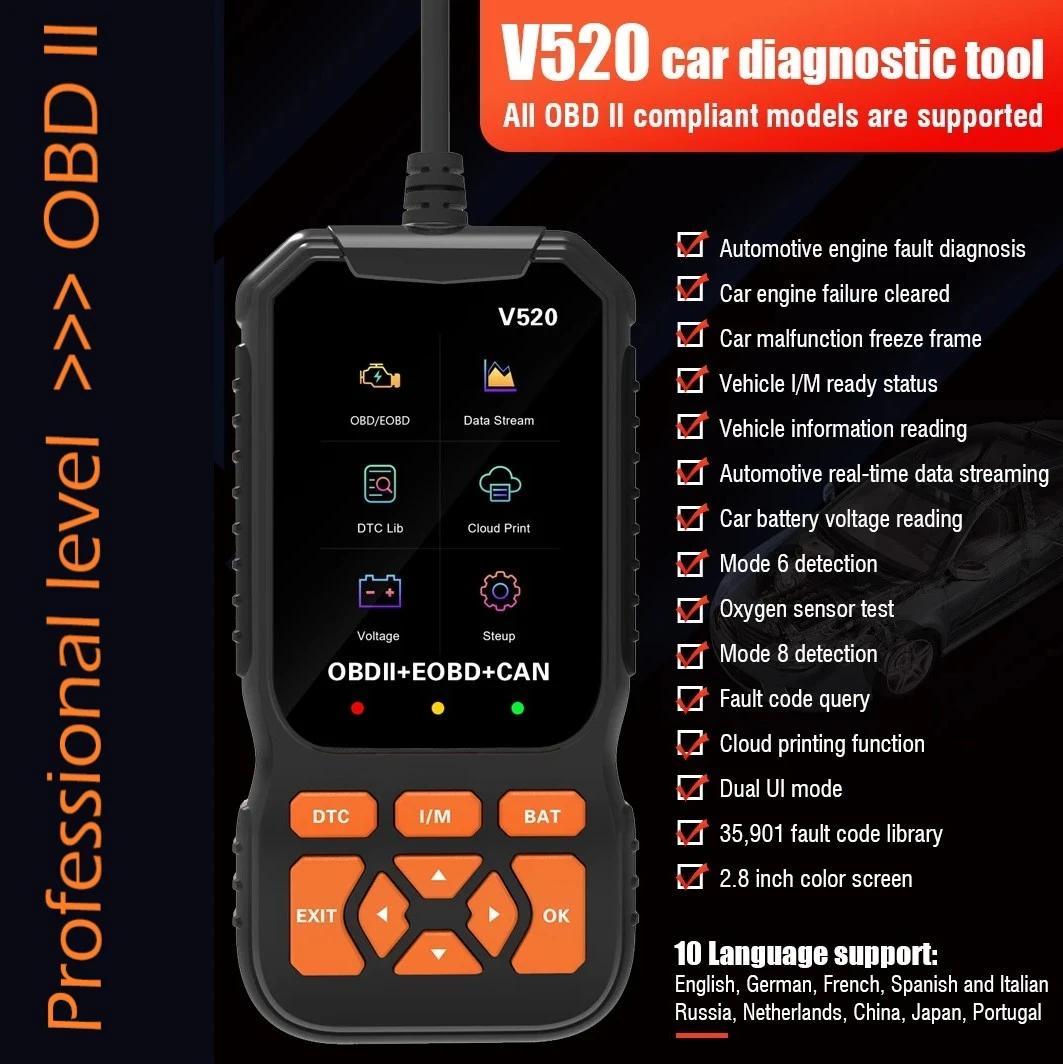

Key Functions:

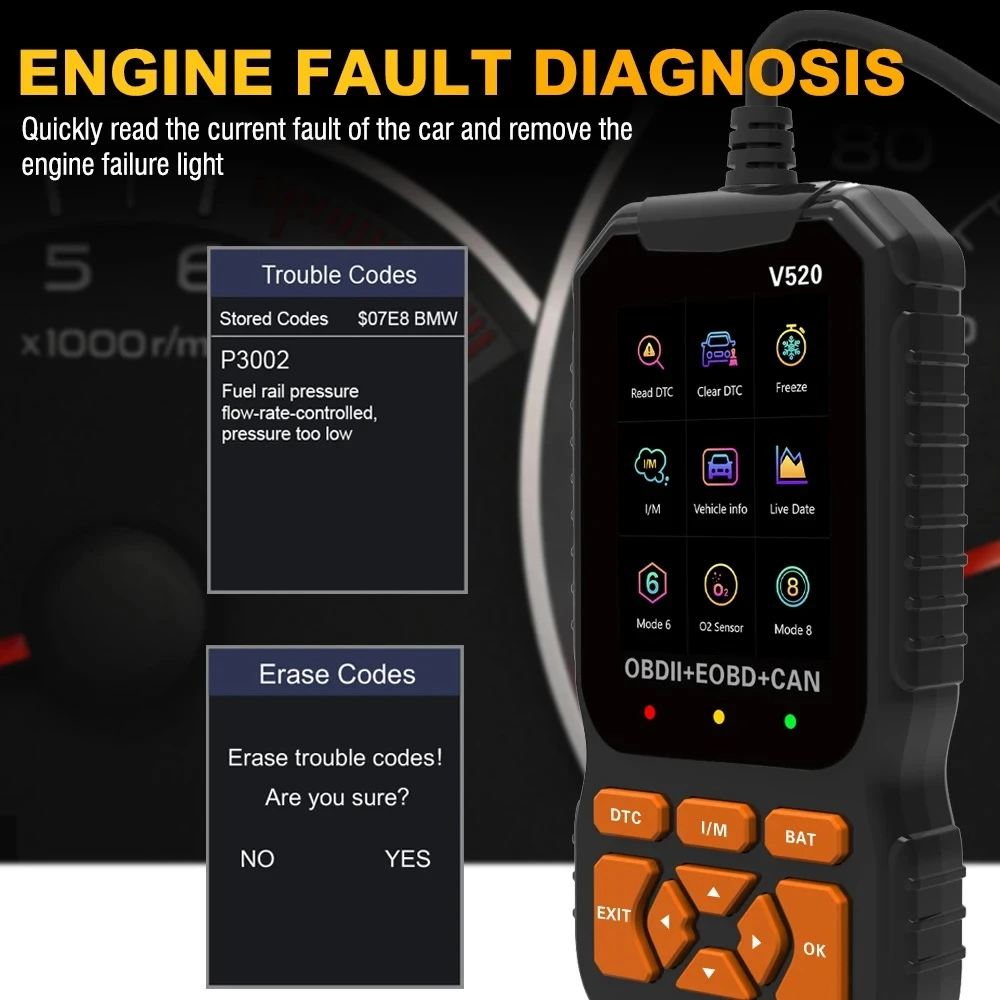

• Diagnosis of automotive engine faults
• Car engine fault light clearing
• Car freeze frame I/M ready status
• Vehicle information reading

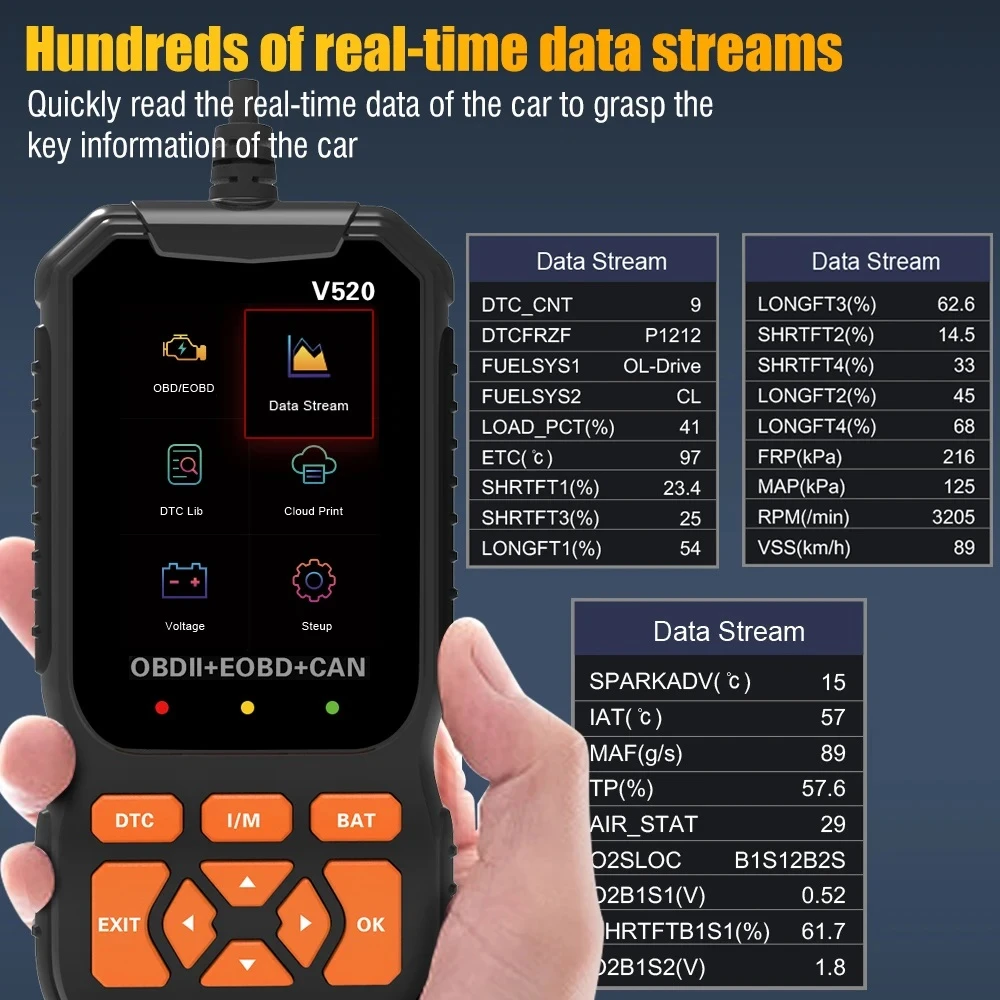

• Real-time data flow
• Car battery voltage reading
• Mode 6 detection
• Oxygen sensor testing
• Mode 8 test
• Fault code query

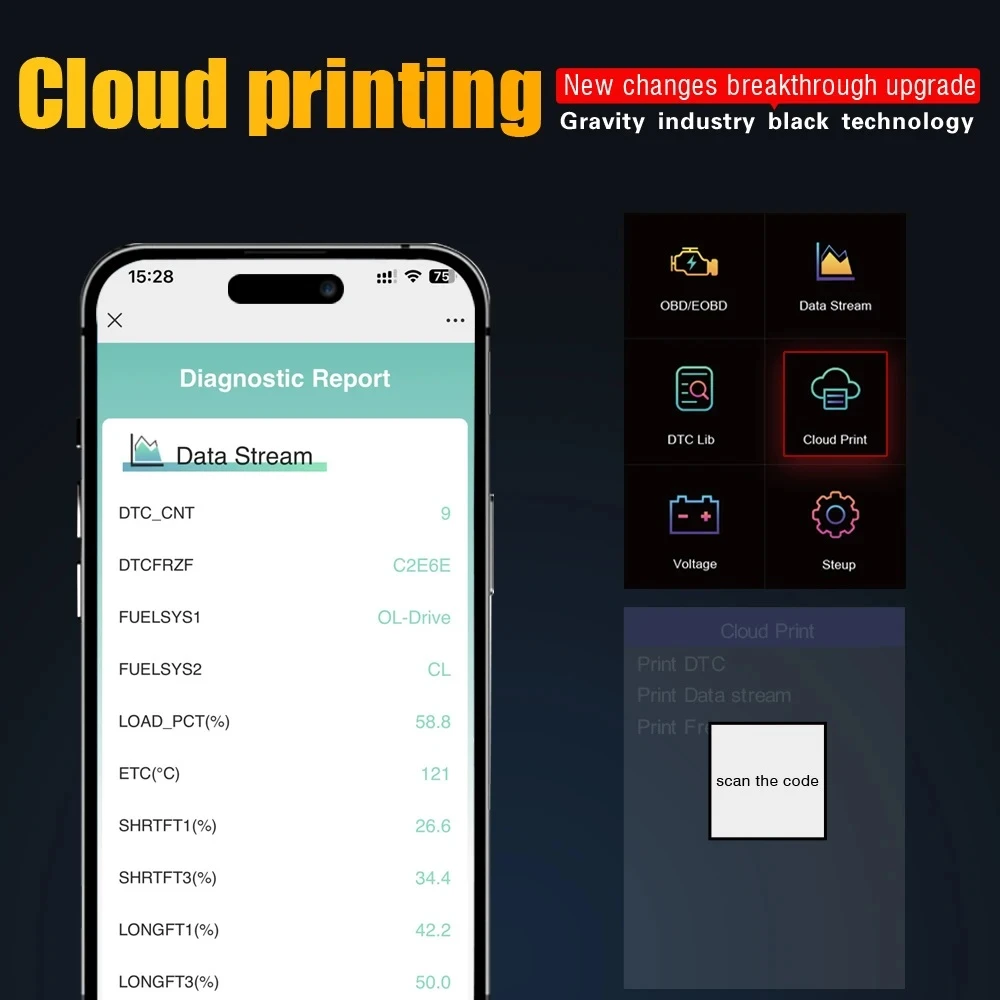

• Code scanning and printing function
• 35901 fault code library

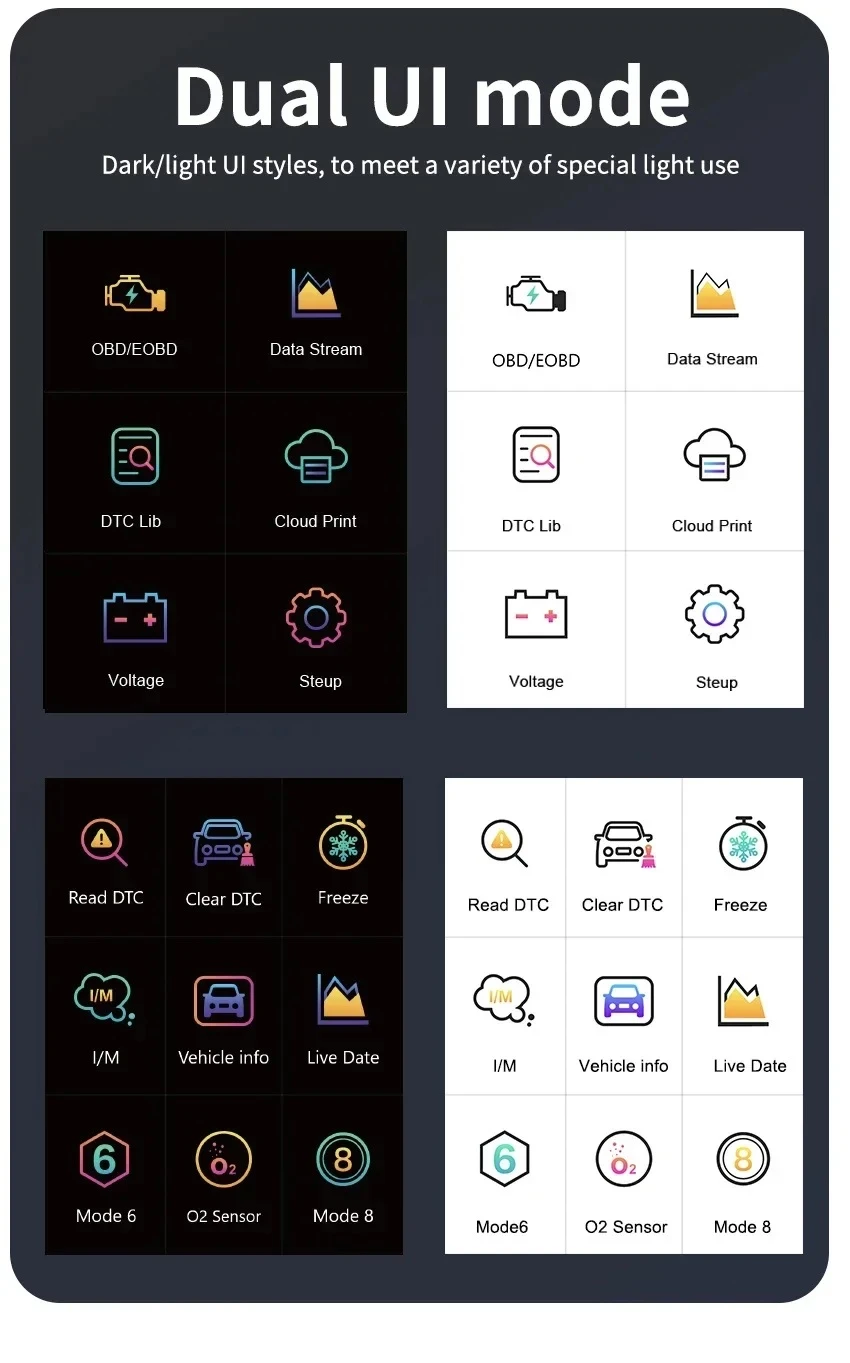

• Color display 2.8 inches

Supported Protocols:

• SAE J1850 PWM（41.6 Kbaud）
• SAE J1850 VPW（10.4 Kbaud）
• ISO 9141-2（5 baud init,10.4 Kbaud）
• ISO 14230-4 KWP（5 baud init,10.4 Kbaud）
• ISO 14230-4 KWP (fast init,10.4 Kbaud）
• ISO 15765-4 CAN（11bit ID,500 Kbaud）
• ISO 15765-4 CAN（29bit ID,500 Kbaud）
• ISO 15765-4 CAN（11bit ID,2500 Kbaud）
• ISO 15765-4 CAN（29bit ID,250 Kbaud）

Supported Vehicle Data:

• Reading error diagnostic codes
• Clear fault codes (clear error codes and turn off MIL)
• Engine RPM
• Calculated load value
• Cooling liquid temperature
• Fuel system status
• Vehicle speed
• Short term fuel situation
• Long term fuel situation
• Intake manifold pressure
• Fuel injection lead time
• Intake temperature
• Air flow velocity
• Absolute position of throttle valve
• Oxygen detection voltage associated with short-term fuel status
• Fuel system status
• Fuel pressure
• Monitoring of fuel consumption, etc.

Note: The number of data items supported varies depending on the model year, subject to actual support.

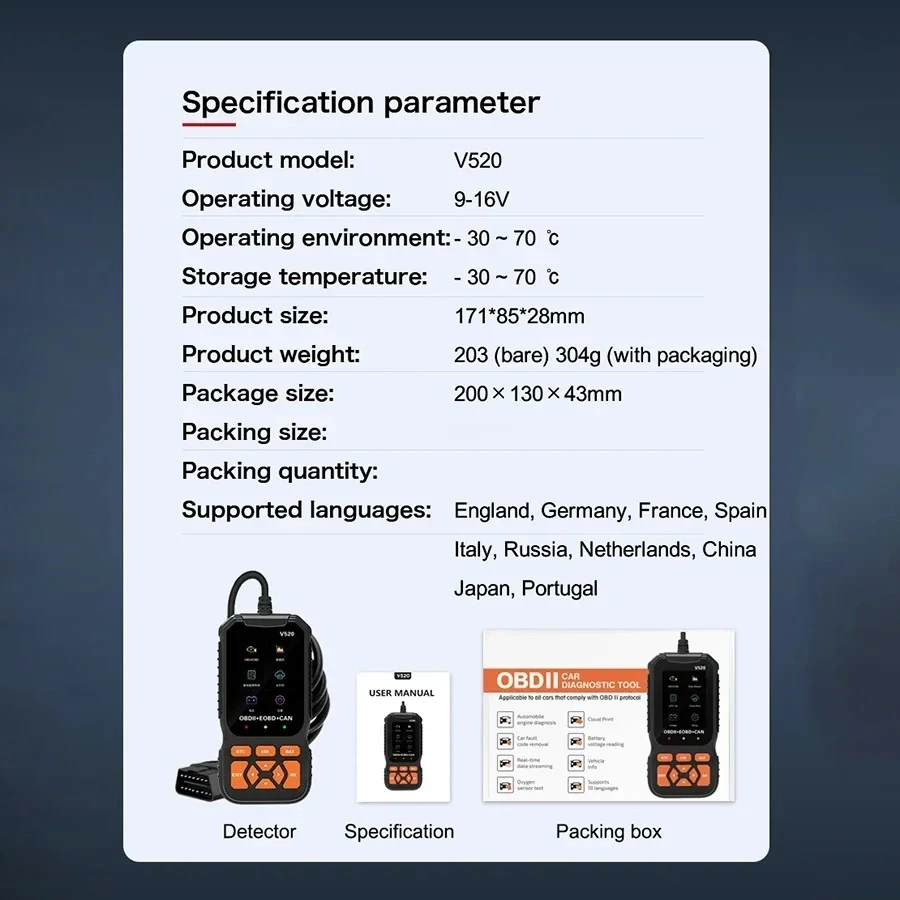

Technical Parameters:

• Main control chip: APM32E103VET6, LQFP100
• Working voltage: DC 9V~16V
• Working current: 36mA~54mA
• Standby current: 40mA
• Operating environment: -30~70 ℃
• Storage temperature: -30~70 ℃

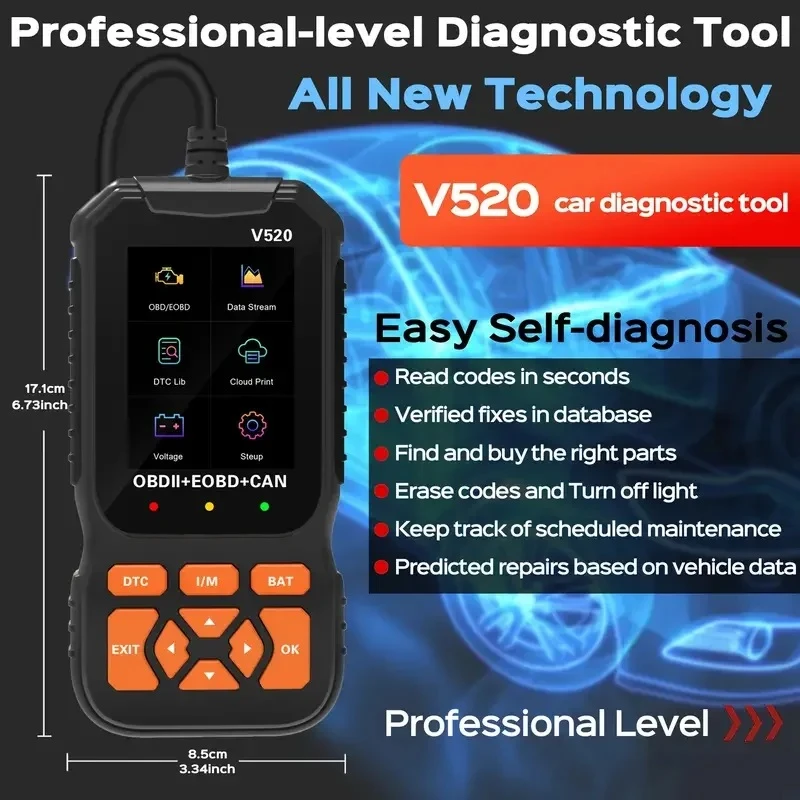

• External dimensions: 171 * 85 * 28mm

Supported Languages:

• English
• German
• French
• Spanish
• Italian
• Russian
• Dutch
• Chinese
• Japanese
• Portuguese
